AI Activue® AI BSD
Activue® AI BSD: Blind Spot Detection System
Navigating today's busy roads in commercial vehicles presents significant challenges, particularly when it comes to blind spots. These areas of limited visibility can lead to dangerous lane changes, merging accidents, and collisions with vulnerable road users. Our cutting-edge Blind Spot Detection (BSD) system is engineered to provide drivers with crucial real-time awareness of their surroundings, effectively mitigating these risks and promoting safer operations.

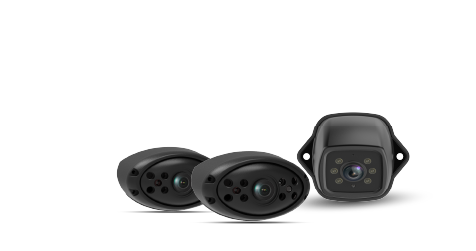

Vehicle Camera CS50A-AI
Vehicle Monitor DM70MR
Alarm and GPS
AI BSD

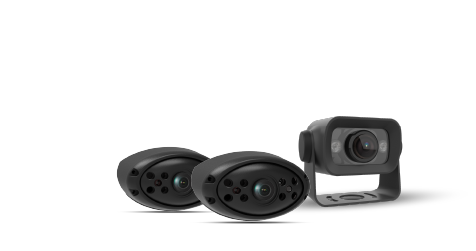

Vehicle Camera CS50A-AI
Vehicle Camera CS50RA
Vehicle Monitor DM70MR

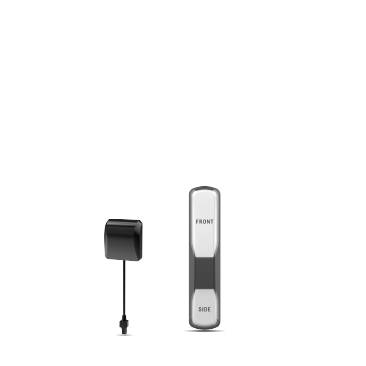

TM32A
GPS AP103A
Contact Us
Features
01
AI VRU Trajectory Prediction: Intelligent recognition of vulnerable road users to prevent accidents in real time.
02
Auto-Panning for Articulated Vehicles: Automatically adjusts the camera field of view to account for vehicle articulation, ensuring consistent monitoring of critical zones.
03
Regulation Compliant: Fully meets UN ECE R151, R159, and PSS, ABE standards for blind spot and moving-off information systems.
04
AI-Powered Fusion Technology: Seamlessly combines high-definition imaging with radar detection for enhanced accuracy and reliability.
05
Audible & Visual Warning Alerts: Real-time notifications help drivers respond quickly to potential hazards.

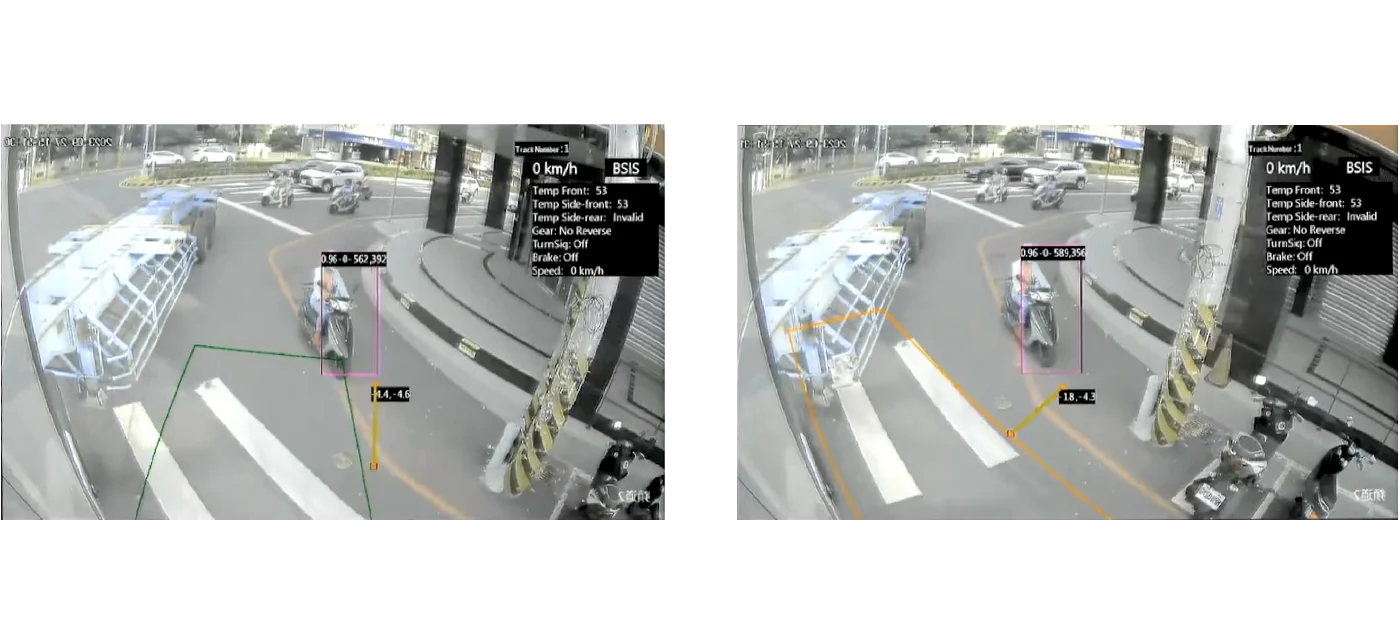

AI VRU Trajectory Prediction
AUTOEQUIPS Blind Spot Detection kits features advanced Vulnerable Road User (VRU) trajectory prediction, leveraging cutting-edge AI algorithms to detect and analyze the real-time movement of pedestrians, cyclists, and other road users. Rather than simply identifying their presence, the system calculates their direction and speed to anticipate potential collision paths. This proactive intelligence gives drivers critical extra seconds to react, significantly reducing the risk of accidents in urban environments where unpredictable movements are common.
Auto-Panning for Articulated Vehicles
Innovative AI-powered auto-panning technology dynamically adapts to the changing geometry of articulated vehicles, ensuring consistent blind spot coverage and real-time detection accuracy. By tracking the articulation angle in real time, it automatically adjusts the camera view and detection zones to ensure continuous monitoring of critical areas. This advanced system enhances safety by preventing blind spot gaps, especially in urban environments, reducing collision risks with vulnerable road users and significantly improving driver awareness and operational reliability.

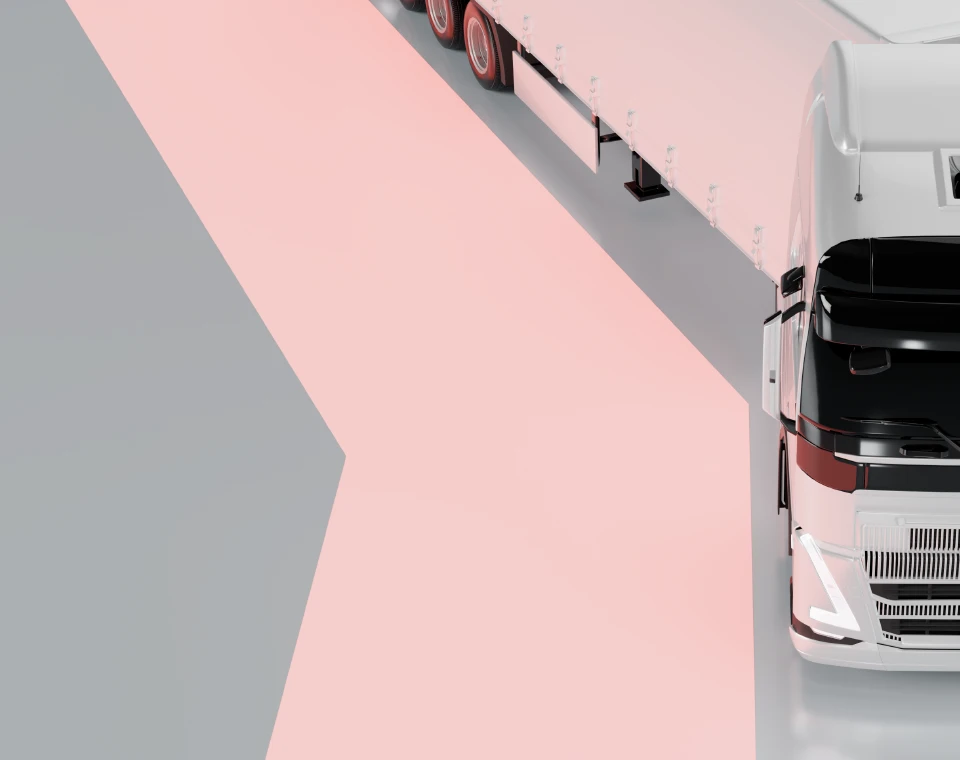

Blind Spot Detection System
Blind Spot Detection System

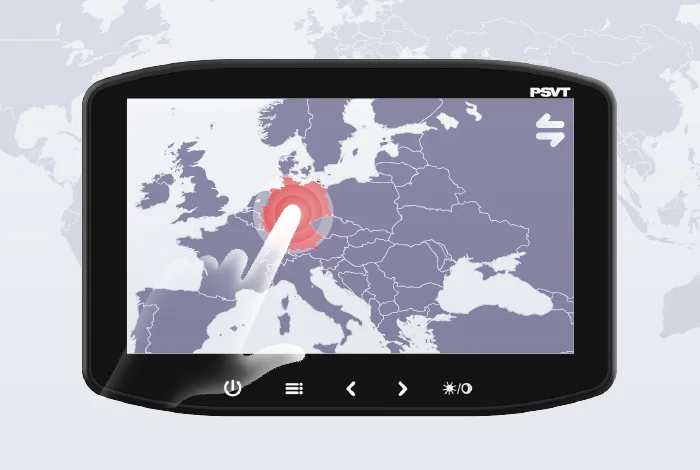

Seamless Regulation Switching
AUTOEQUIPS Bind Spot Detection System supports full regulatory alignment with DVS (Progressive Safe System), UNECE R151 (BSIS), UNECE R159 (MOIS), and German ABE specifications. With a single click through the OSD menu, drivers or fleet managers can switch between compliance modes tailored to the country or region of operation. This flexibility simplifies fleet standardization, eliminates the need for multiple hardware sets, and ensures consistent regulatory adherence across the UK, EU, and beyond.
AI BSD
AI-Powered Fusion Technology
AUTOEQUIPS’ AI-powered fusion technology represents the next frontier in commercial vehicle safety. By seamlessly integrating high-definition imaging with radar detection, the system delivers unparalleled accuracy and reliability in object identification—particularly in blind spots and high-risk zones. This synergy between vision and radar ensures robust performance even in adverse conditions such as rain, fog, or low-light environments.
AI BSD

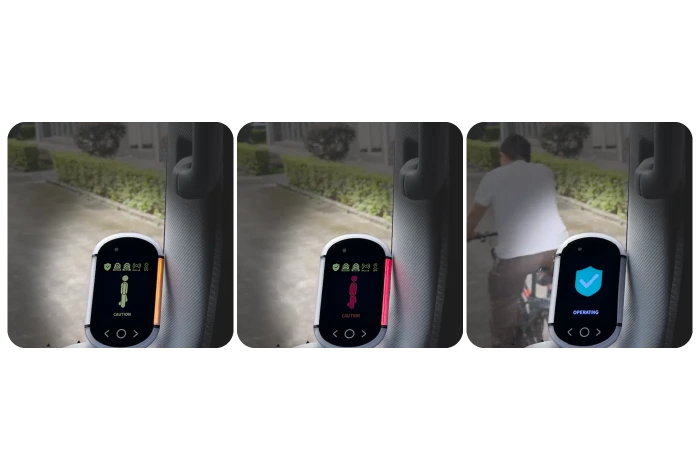

Intuitive Interactive Alerts and User Interface Design
The warning device’s character pattern changes from yellow to red and flashes quickly until the danger passes.
Product Specifications
AI BSD
DM70MR CS50RA CS50A-AI AP120 AP103A
DM70MR

Operating Mode

Touch, physical buttons

Resolution

1024*600*3 (RGB)

Contrast Ratio

1000

Brightness

450 cd/m²

Monitor Size

7 inch

Angle of View

85/85/85/85

Video Input

3-channel AHD/CVBS

Rated Voltage

DC 12V/24V

Operating Voltage

DC 9.5V~36V

Power Consumption

≤24W

Boot Time

Within 15s

Response Time

≤200ms

Operating Temperature

-30℃~80℃

Storage Temperature

-20℃~70℃

Material

Aluminum/Plastic

Dimensions

199(L)*125(W)*56(H)mm

AI

Support
CS50RA

Resolution

1920(H)*1080(V)

Color System

PAL/NTSC(optional)

FOV

180°(H)

Video Output

AHD1080P 25/30 FPS

Minimum Illumination

0.1LUX

Night vision infrared

With IR infrared sensing

Waterproof and dustproof grade

IP68

Rated voltage

DC12V/150mA

Operating voltage

8-16V

Power consumption

<1.8W

Operating temperature(℃)

-30℃~70℃

Storage temperature(℃)

-40℃~80℃

Material

Aluminum

Dimension

80(L)*37(W)*52(H)mm
CS50A-AI

Image Type

1/3” Inch CMOS

Resolution (Pixels)

1280(H)*720(V)

Effective Pixels

2.0M Pixels

Lens Size

2.3mm

Lens Angle

160°(D)*150 °(H)*76°(V)

Color System

PAL/NTSC

Operating Temperature

-20℃~70℃

Storage Temperature

-40℃~80℃

Night Vision Distance

<10m

Dimensions (mm)

79(W)*63.5(H)*48.3(D)
AP120

Rated Voltage

150mA@12V

Operating temperature(℃)

-20℃~70℃

Storage temperature(℃)

-30~80℃

Weight

50g
AP103A

Ultra high track sensitivity

-165dBm

Baud rate

115200.10Hz

Operating voltage

3.0V~5.5V

Power consumption

50mA@3.3V

Patch Antenna Size

35*35*4mm

Small form factor

55+0.5x50+0.5x18.4+0.3mm

Communication type

UART/TTL
