Products Virtual360® 360° Surround View Monitor 4CH AI Surround View Monitor
360° Surround View Monitor CB346-AI
Next-Generation 360° Surround View Monitor Powered by AI
The new-generation panoramic imaging system harnesses advanced AI technology and integrates four strategically positioned wide-angle cameras at the front, rear, left, and right sides of the vehicle. Working collaboratively, these cameras generate a real-time, 360° panoramic view, delivering complete and uninterrupted visual coverage of the vehicle's surroundings. A proprietary image stitching algorithm seamlessly merges the feeds into a unified, high-definition surround view, effectively eliminating traditional visual blind spots. 360° Surround View Monitor significantly enhances safety during parking, low-speed maneuvering, and navigating complex road conditions, providing drivers with greater confidence and situational awareness.
95681302
360° Surround View Monitor
AVM control box
360° Surround View Monitor CB346-AI

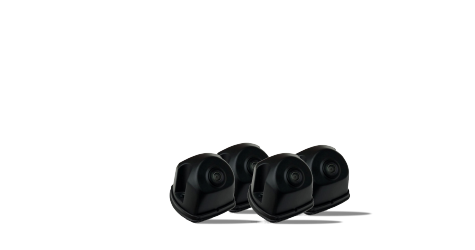

Vehicle Camera CS30L
Vehicle Monitor TM70R
Control Box CB346-AI
Contact Us
Features
01
AI Pedestrian Detection: Real-time, accurate recognition with built-in AI algorithms.
02
Audio Alerts: Instant voice warnings to boost driver response.
03
One-Touch Calibration: Fast and easy automatic system setup.
04
4-Channel 1080P Camera Input: Supports seamless integration of up to four HD cameras.
05
3D/2D Mode Switching: Instantly switch between panoramic and standard views.
06
Video Storage: Local recording supported with up to 256GB SD card.
07
External GPS Support: Enables enhanced positioning and route tracking.

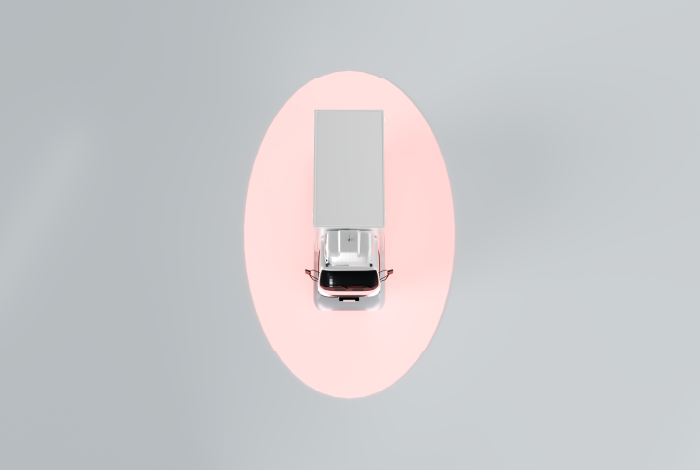

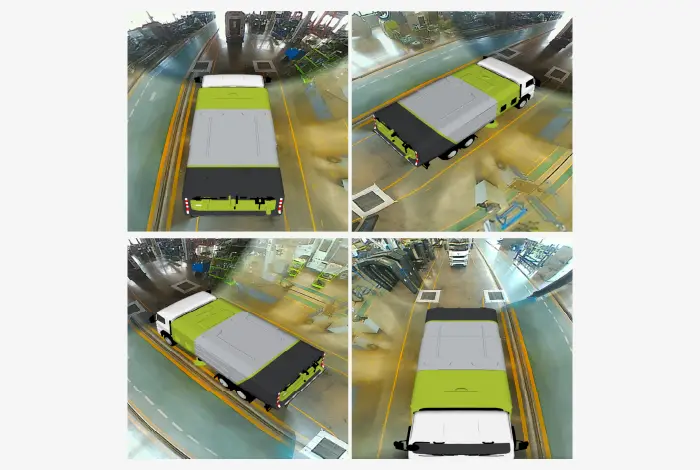

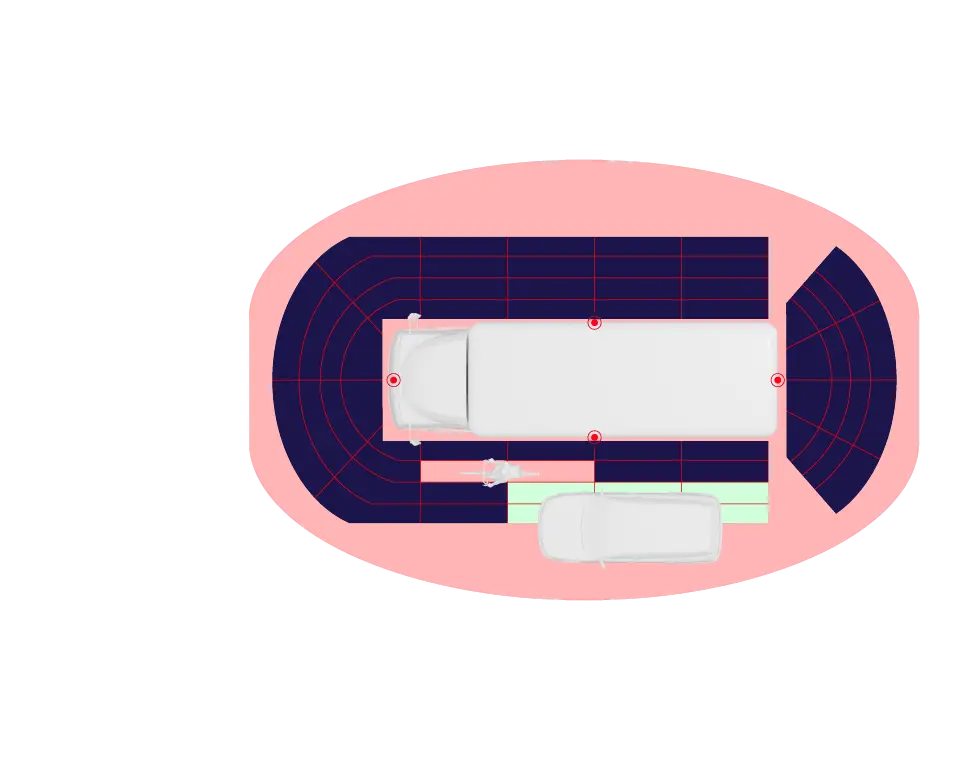

Perfect 360° Stitching for All-round Vision Coverage
AI 360° Surround View Monitor CB346-AI utilizes four ultra-wide-angle cameras combined with advanced image stitching technology to create a seamless 360° panoramic bird’s-eye view of the vehicle’s surroundings. This comprehensive visual coverage effectively eliminates the physical blind spots associated with traditional rearview mirrors and the driver’s natural field of vision, significantly enhancing situational awareness and driving safety.
For drivers, 360° Surround View Monitor CB346-AI is especially valuable in complex scenarios such as parking, navigating narrow roads, and making low-speed turns. It effectively helps prevent accidents like side scrapes and collisions, significantly improving overall driving safety and confidence.

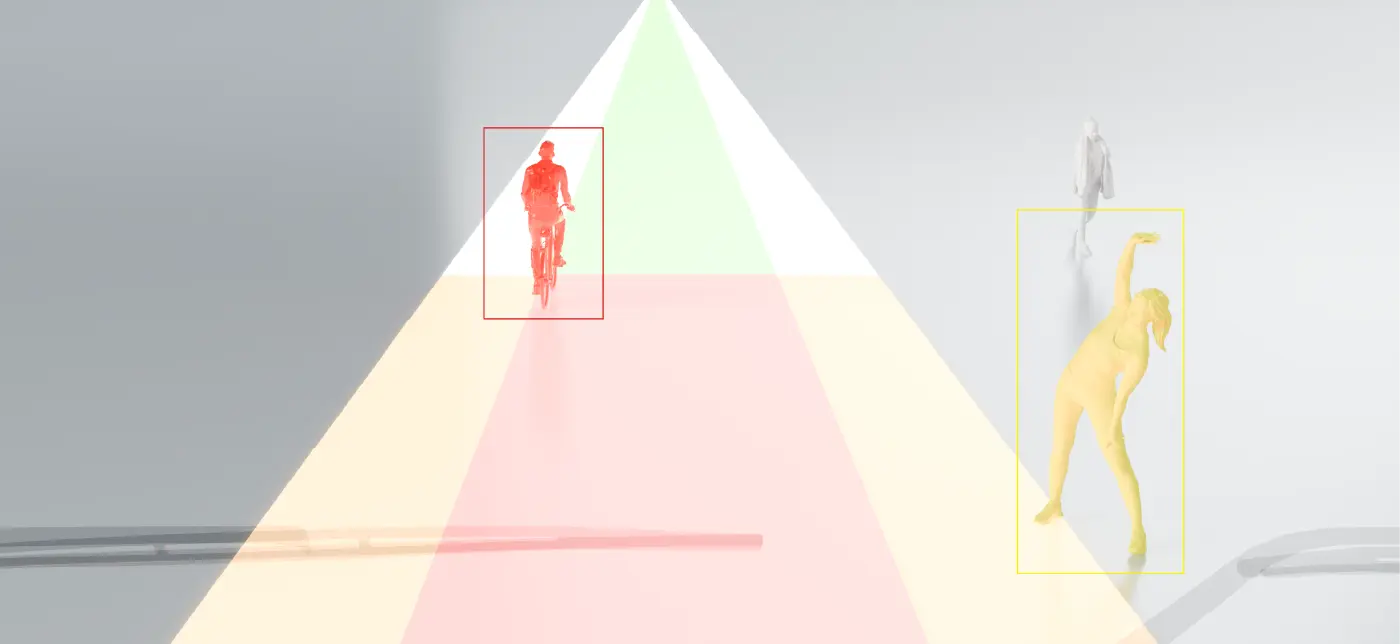

AI-Based Distance Measurement for Precision Driving
Leveraging AI-powered distance measurement, 360° Surround View Monitor calculates the real-time distance between the vehicle and detected pedestrians or obstacles, displaying this data directly on the screen. 360° Surround View Monitor CB346-AI provides drivers with accurate, quantifiable spatial awareness—particularly valuable during close-range parking or when following vehicles in congested traffic. By enhancing distance perception, 360° Surround View Monitor CB346-AI helps prevent collisions and significantly improves driving precision and safety.

360° Surround View Monitor
360° Around View Monitor
High-Reliability Hardware and Ultra-Wide HD Imaging
Designed for rugged commercial use, the system features high-definition, ultra-wide-angle cameras that deliver clear, detailed imaging for seamless 360° panoramic stitching. With superior low-light performance, it ensures reliable visibility day or night. Built to withstand extreme temperatures, it's ideal for harsh conditions like desert logistics or high-altitude operations—enhancing durability and safety across all environments.
360° Around View Monitor
Time-Efficient Installation and Calibration
Simply use the remote control and place the calibration cloth as required, and the automatic calibration can be completed within one minute. In addition, the manual calibration operation is also very convenient. Both calibration methods can easily enhance the safety and operational efficiency of the vehicle.
360° Around View Monitor

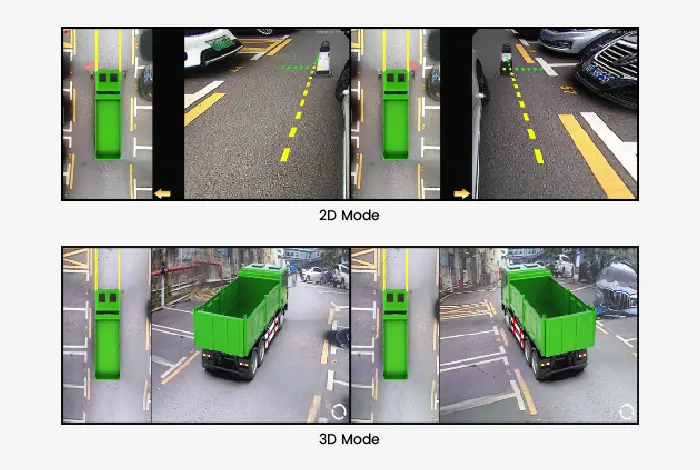

Intelligent Visual Assistance for Safer Maneuvers
During complex driving tasks such as turning or reversing, the system intelligently and automatically switches to the most relevant camera views—whether locally magnified or special-perspective images—without requiring manual input. This enhances driver focus and safety by ensuring timely visibility of critical blind spots, like the inner-wheel difference zone. The system also supports automatic switching to corresponding side-view or display modes (e.g., 2D, 3D, or single-screen views) based on turn-signal inputs, providing seamless, situation-aware visual assistance.
Around View Monitor Application
Versatile Compatibility Across Commercial Vehicle Types
The CB346-AI is designed for broad applicability across a wide range of commercial vehicles. It is ideally suited for medium and heavy-duty trucks—such as box trucks and dump trucks—as well as city buses, long-distance coaches, and various construction vehicles including excavators and forklifts. Additionally, it supports specialized logistics vehicles like refrigerated trucks and trailers, making it a highly adaptable solution for diverse fleet management needs.
Product Specifications
CB346-AI
CB346-AI Control Box CS30L Camera

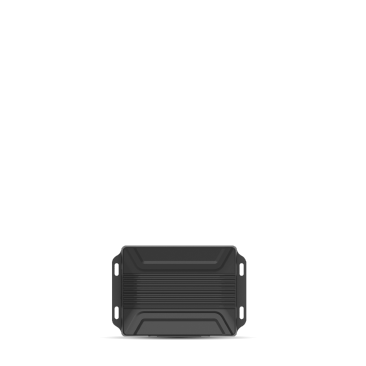

CB346-AI Control Box

Input video

AHD 1080P (NTSC/PAL)

Output video

AHD 1080P/720P/CVBS

Trigger signal

CAN(High/Low)/ 3 I_O Input(Left/Right/Reverse)

Rated voltage

12/24V

Operating voltage

9~36V

Camera voltage

12V

Normal power

8W (connecting 4 cameras)

Maximum power

≤10W (supports up to 4 cameras)

Water & Dust Resistant

IP5X

Storage temperature

-40℃~85℃

Working temperature

-20℃~80℃

Dimension

150(L)*100(W)*40(D)mm

Weight

350g

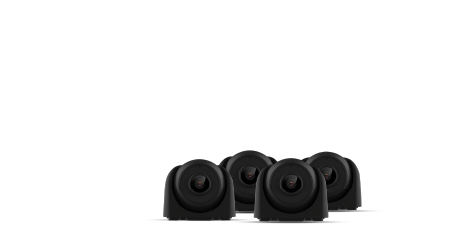

CS30L Camera

Image sensor

1/2.9" CMOS

Signal Format

AHD

Resolution (Pixels)

1280 (H) × 720 (V)

Lens Angle

210°(D)*200°(H)*144°(V)

Minimum Illumination

0.1 Lux

Wide Dynamic Range

> 105 dB

Video Output Format

AHD 720P

System Format

PAL / NTSC

Synchronization

Internal Synchronization

Waterproof & Dustproof

IP68

Vibration Resistance

≥ 6g

Video Output

1.0 Vp-p (75Ω)

Focal Length

1.3 mm

Operating Voltage

DC 12V ±10%

Power Consumption

≤ 2.5W

Operating Temperature

-25°C to +85°C

Storage Temperature

-40°C to +85°C

Dimensions

55.6 (L) × 49.9 (W) × 44.5 (H) mm
