AI Activue® AI MDVR
AI MDVR
AI MDVR

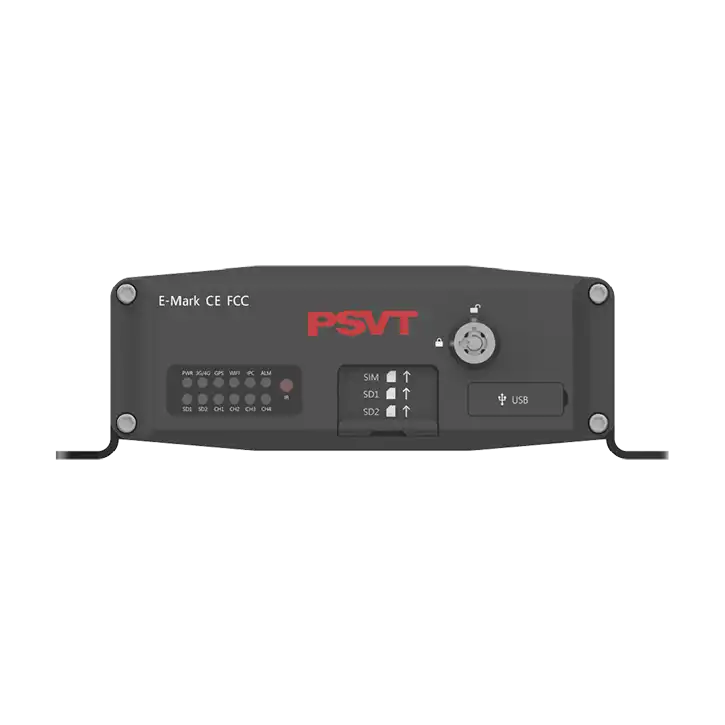

MDVR F04
4CH / AI MDVR /All-In-One Device
AUTOEQUIPS’Activue® MDVR for commercial vehicles combines camera footage with GPS, speed, and g-force data for effective fleet management. It stores seven days of local footage, supports cloud storage, and sends instant alerts for accidents, duress, camera issues, or tampering, ensuring proactive monitoring and response.
Contact Us
Features
01
Supports multiple camera types, catering to diverse surveillance needs with high-quality analog & IP-based video solutions.
02
Combines driving recorder, GPS, video monitoring & AI detection, simplifying setup while delivering comprehensive safety/monitoring via integrated key functions.
03
Equipped with AI-BSD, ADAS, DMS, these features enhance safety by detecting blind spots, assisting driving and monitoring drivers.
04
Flexibly integrates with various third-party devices (sensors, alarms, software), allowing customized security setups per specific needs.
05
Supports dual 512G SD cards to record routine/emergency data, providing accurate incident evidence to protect driver/company interests.
06
Handles large-volume data smoothly, organizes it logically for quick, accurate search/retrieval, ensuring hassle-free data management.
07
Widely applied for buses/passenger cars etc., supports DMS/ADAS/BSD/APC & passenger flow stats, ensuring safe driving & boosting operation efficiency.
Function Integration
MDVR
MDVR

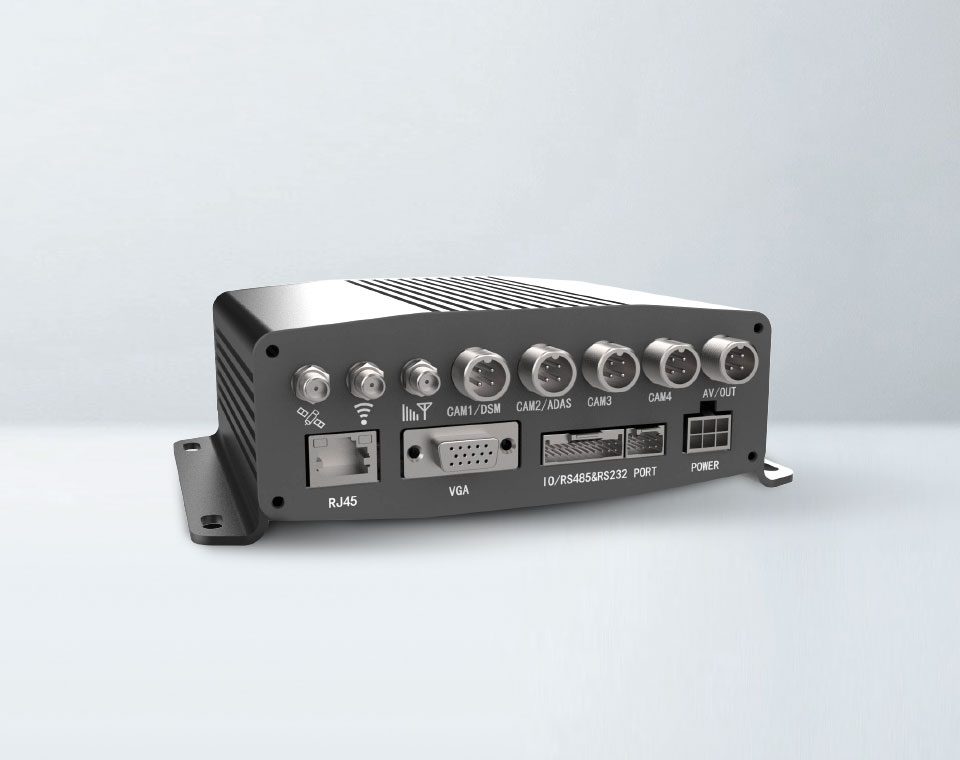

Camera Support
Our system offers comprehensive camera support, allowing you to connect multiple types of cameras with ease. It supports 4-channel CVBS/1080P AHD, which are well - known for their high - quality analog video transmission, ensuring clear and detailed footage. Additionally, it has 1 - channel IPC input, enabling seamless integration with IP cameras for more advanced and network - based video solutions. This wide - range camera support caters to various surveillance needs and scenarios.
95834210
4-channel CVBS
1080P AHD
Easily connect multiple types of cameras
All-in-One System
Our all-in-one system is a revolutionary solution that combines several crucial functions. It integrates a driving recorder to capture all driving events, a GPS for accurate location tracking, video monitoring for real - time visual surveillance, and AI detection to identify potential risks. By bringing these functions together, it simplifies the setup and operation process, saving you time and effort while providing a comprehensive safety and monitoring solution.
MDVR
Tachograph
Used to capture all driving events
GPS
Accurate positioning and tracking
Video monitoring
Used for real-time visual monitoring
AI detection
Used to identify potential risks
Mobile DVR

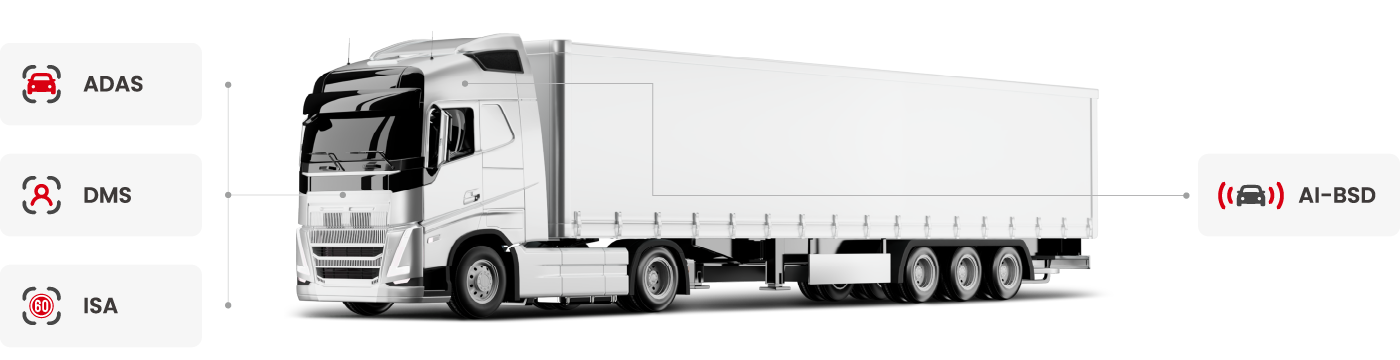

Advanced AI Features
Our product is equipped with a set of advanced AI features. The AI-BSD (Blind Spot Detection) helps in detecting vehicles in the blind spots, enhancing driving safety. ADAS (Advanced Driver Assistance Systems) provides assistance in various driving situations, such as lane departure warnings. DMS (Driver Monitoring System) monitors the driver's behavior, and APC (Automatic Passenger Counter) eases the business process. These algorithms work together to provide a smarter and safer driving experience.

Recorder Connectivity
The recorder connectivity of our system is highly versatile. It is fully compatible with both WiFi and 4G recorders. With WiFi connectivity, you can easily transfer data to nearby devices for quick review and analysis. The 4G support allows for remote access and real-time data streaming, enabling you to keep an eye on the recorded content from anywhere, at any time. This dual-connectivity feature offers great flexibility and convenience for users.
Mobile DVR
Third-Party Integration
Our system stands out with its flexible third-party integration capabilities. It can be easily integrated with a wide variety of third-party devices. Whether it's other monitoring sensors, alarm systems, or specialized software, our system can adapt to different devices and work in harmony. This flexibility ensures that you can customize your security and monitoring setup according to your specific requirements and existing infrastructure.
When it comes to storage, our system offers generous capacity. It supports dual 512G SD card, which means you can store a vast amount of video data. This large storage space is especially useful for long-term surveillance,
Large Storage
as it allows you to keep records for an extended period without worrying about running out of storage. You can rely on our system to store all the important footage securely.
Mobile DVR Mobile DVR
Efficient Data Management
Our system has reliable and efficient data management capabilities. It can handle large volumes of data smoothly, ensuring that there is no data loss or corruption. The data management system is designed to organize the data in a logical way, making it easy to search and retrieve specific information. Whether it's sorting the footage by time, location, or event type, our system can do it quickly and accurately, providing you with a hassle-free data management experience.
Product Specifications

Video Input

Support 4CH 1080P/960P/720P, AHD/960H/D1/CIF camera input and 1CH IPC

Video Compression

H.264/H.265

Video Encoding Resolution

CIF/HD1/D1/960H/720P/1080P

Storage Medium

Supports dual SD cards up to 512G

Wireless

4G

G-Sensor

T

Communication Interface

USB*1/RS232*1/RS485*1/RJ45*1/CAN*2

Input Voltage

DC 9V~36V

Output Voltage

+12V@1A; +5V@1A

Static electricity

≤3mA

Operating Temperature

-30℃~70℃

Operating humidity

5%~95%

Side

186(L)*58(W)*183(H)
Application
scenarios
AUTOEQUIPS 4CH Waterproof AI MDVR all-in-one device is widely applied, able to offer professional and reliable vehicle management solution for buses, passenger cars, tourist cars, school buses and other vehicles and support DMS, ADAS, BSD, APC,360 and passenger flow statisctics algorithm, guranteeing safe driving, effectively improving the operation efficiency.
83617094
Construction Vehicles
24065187
Truck Transportation
