Products BlindVue® Camera Monitor System Mirror Replacement-Truck
Mirror Replacement-Truck

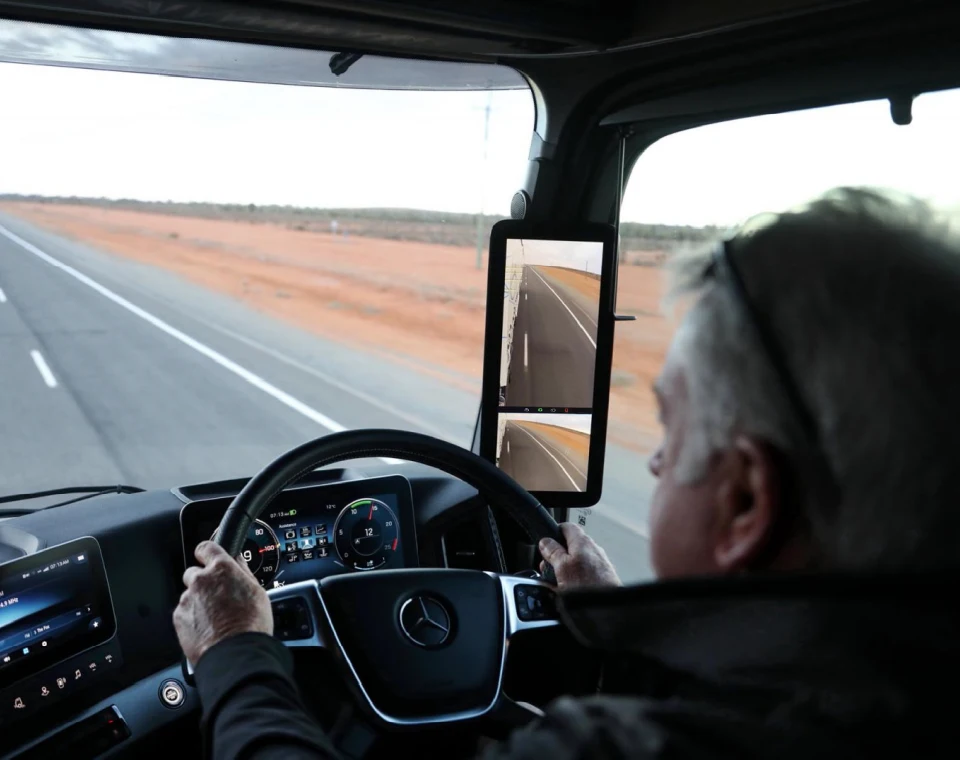

In the demanding world of trucking, safety is of utmost importance. The AUTOEQUIPS' Camera Monitor System is a game - changing safety solution, designed specifically to meet the unique needs of trucks. With real - time blind spot visualization and advanced view - panning, it ensures the safety of commercial trucks in every journey. Built to endure all conditions, this system not only enhances driver awareness but also boosts operational efficiency.
LVDS
Mirror Replacement-Truck
Mirror Replacement-Truck
Mirror Replacement-Truck
Mirror Replacement-Bus LVDS
Monitor DM15D
Monitor DM90D
Vehicle Camera CM60EB
Vehicle Camera CS50V
Keypad KP101
Contact Us
Features
01
Passed EU UNECE R46, R10, R118, as well as vehicle - type approval processes including Homologation and Type Approval.
02
Fully replaces traditional physical rearview mirrors and meets the direct vision regulations of the EU, the United States (SAE J3155), China (GB 15084 - 2020), and Taiwan, China.
03
Reduce wind resistance, enabling energy conservation and environmental protection.
04
Featuring system failure detection and self - inspection, ensuring fully reliable functionality.
05
Equipped with a camera heating function, it can withstand extreme weather; it provides clear vision even in harsh weather and dark environments.
06
Boasting extensive road - driving experience, it has accumulated a total actual driving mileage of nearly 300,000 kilometers across multiple countries, including Europe, the United States, and China.

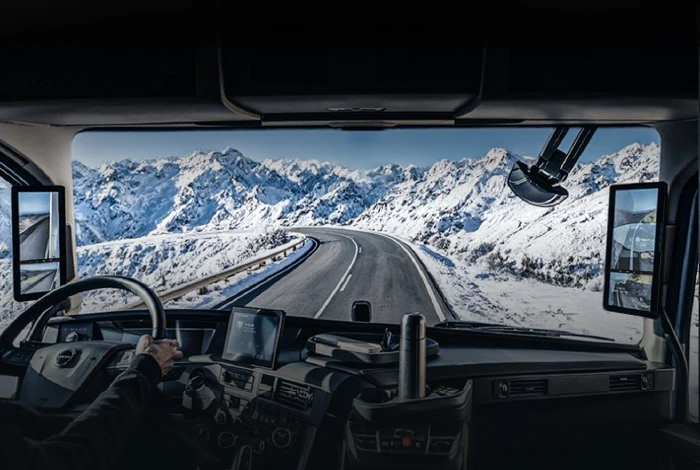

High Definition Image Quality
Utilizes electronic rearview mirrors technology to provide clear, detailed images for bus drivers. Whether they are navigating through busy city streets or on long - distance routes, the high - definition visuals ensure an optimal visual experience, allowing drivers to easily spot potential hazards.

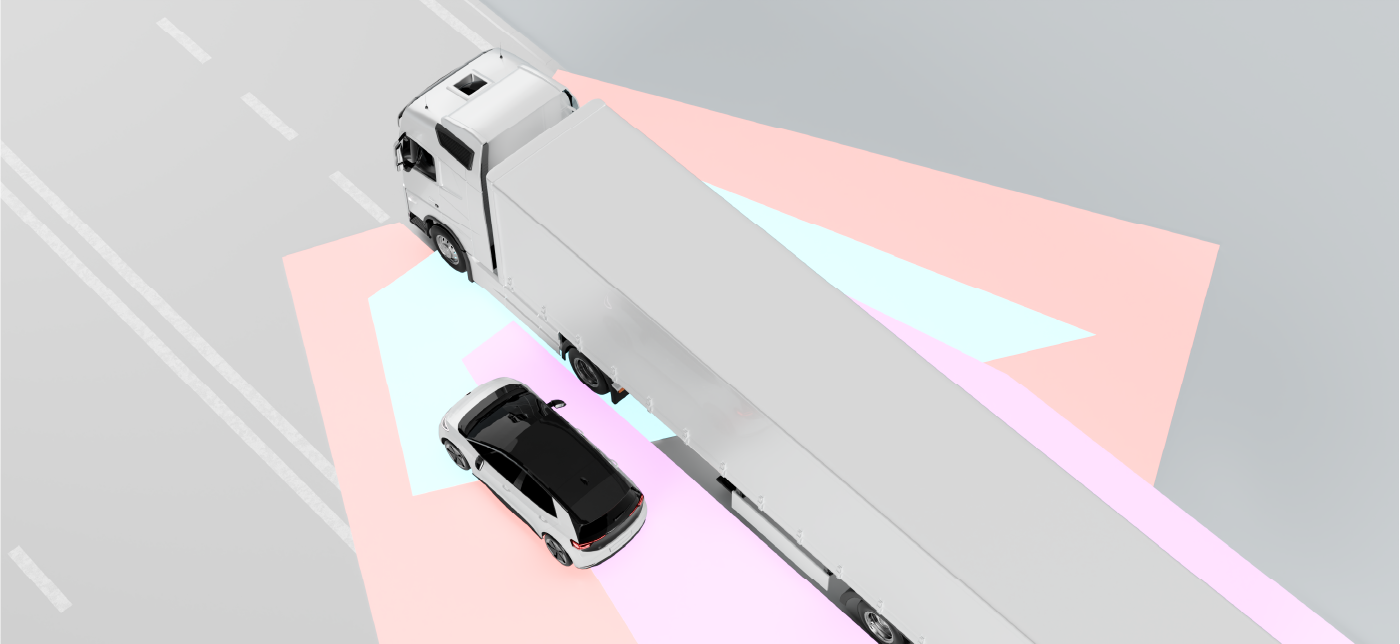

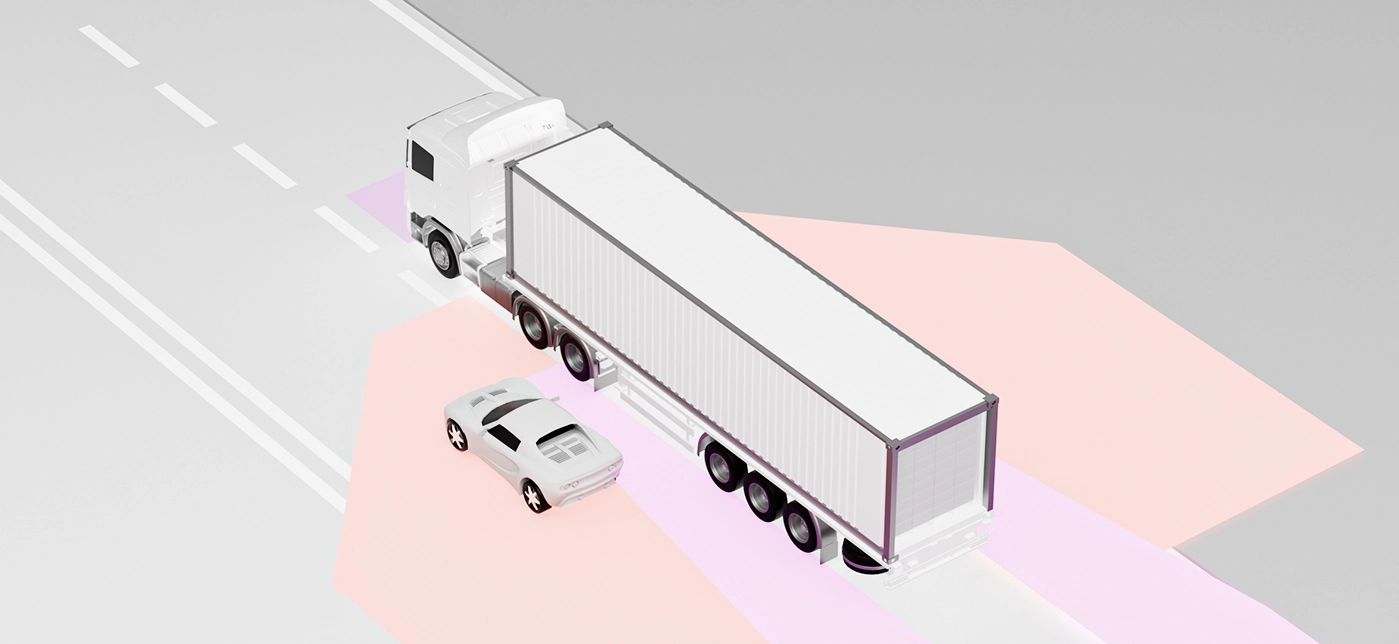

Wide Field of View
Electronic rearview mirrors, a key component of this system for buses, offer a broader field of view compared to traditional mirrors, which reduces these blind spots, enhancing driving safety and making it easier for bus drivers to change lanes or park safely.
Mirror Replacement-Truck
Mirror Replacement-Truck

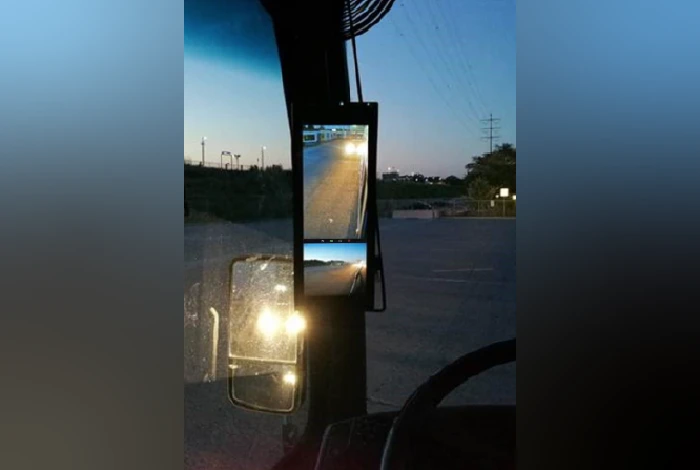

Night Vision Function
Equipped with advanced night vision technology, the system enables bus drivers to have clear rear views even in low - light conditions. This feature ensures that the driver can monitor the rear of the bus effectively, protecting passengers and other road users.
Mirror Replacement-Truck

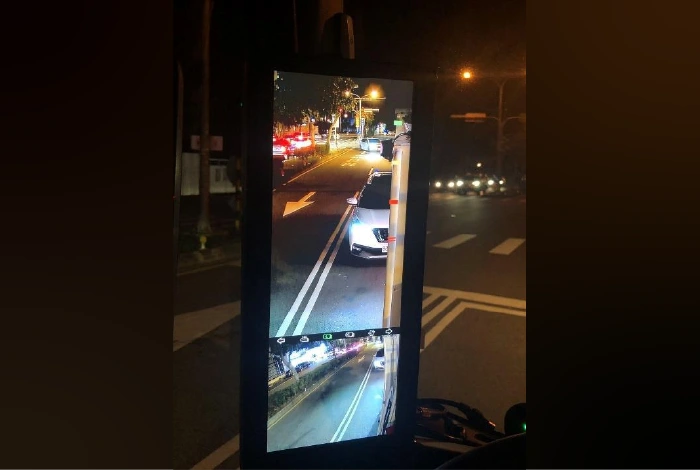

Anti-Glare Design
In the context of bus travel, the anti - glare design effectively suppresses strong light from rear vehicles. This is crucial as buses minimizing glare improves nighttime driving safety for the bus driver and those on board.
Mirror Replacement-Truck

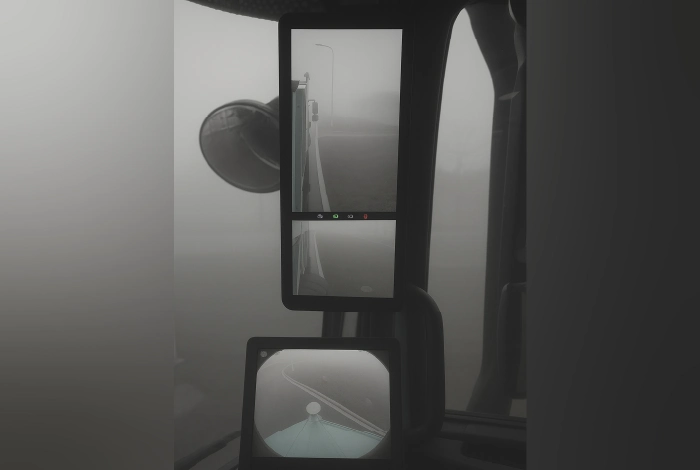

Waterproof and Anti-Fog
Buses operate in all kinds of weather, and the Camera Monitoring System's waterproof and anti - fog design ensures clear images in various adverse weather conditions.
Mirror Replacement-Truck

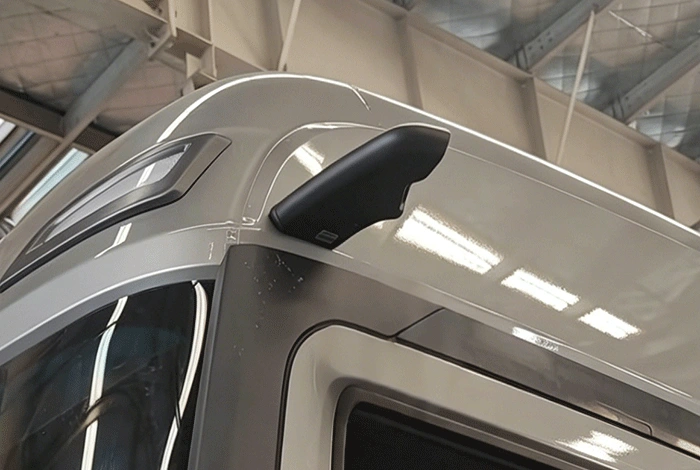

Shock - Resistant and Durable
Designed for buses, the system has great shock resistance. Buses face bumps and vibrations, and this design ensures cameras work well, guaranteeing long - term durability.
Mirror Replacement-Truck
Easy Installation
The system's modular design allows for quick and simple bus installation. It saves bus operators' time and costs, reducing vehicle downtime.
Product Specifications
LVDS
LVDS Monitor Camera
LVDS Monitor
15-inch DM15D LVDS Monitor
Screen size 15 inches
Resolution 1920*720
Contrast ratio 1300
Brightness 1000 cd/m²
Viewing angle Up/Down/Left/Right: 85°/85°/85°/85°
Refresh rate 60FPS
CAN 2 channels
Response time 18.17 ms (25 ± 2°C)
Video input 2 LVDS channels
Operating voltage DC 9V~36V
Operating temperature -30°C to +75°C
Storage temperature -30°C to +85°C
9-inch DM90D LVDS Monitor
Screen size 9 inches
Resolution 1280*720
Contrast ratio 800
Brightness 950 cd/m²
Viewing angle Up/Down/Left/Right: 85°/85°/85°/85°
Refresh rate NTSC 30FPS / PAL 25FPS
CAN /
Response time 35 ms (25 ± 2°C)
Video input 1 LVDS channel
Operating voltage DC 9V~36V
Operating temperature -30°C to +70°C
Storage temperature -40°C to +85°C
Camera
Camera CM60EB
Image Type 1/2.6-inch CMOS image sensor
Resolution 1920*1280
System Standard LVDS
Field of View (FOV) Class II 64°(H)/42.1°(V), Class IV 100.2°(H)/65.2°(V)
Enhanced Low-Light Display 0.1 Lux
High Dynamic Range 140 dB
Flicker Mitigation (LFM) Supported
Video Output LVDS 1920*1280 Raw 60 FPS
Water and Dust Protection Rating IP69K
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Camera CS50V
Image Type 1/2.8-inch CMOS image sensor
Resolution 1920*1080
System Standard PAL/NTSC
Field of View (FOV) 210°(H)/155°(V)
Enhanced Low-Light Display 0.1 Lux
High Dynamic Range >120dB
Signal-to-Noise Ratio 42dB
Video Output LVDS 1920*1080 25/30 FPS
Water and Dust Protection Rating IP69K
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
