AI Activue® AI MDVR
MDVR for Forklift
MDVR for Forklift

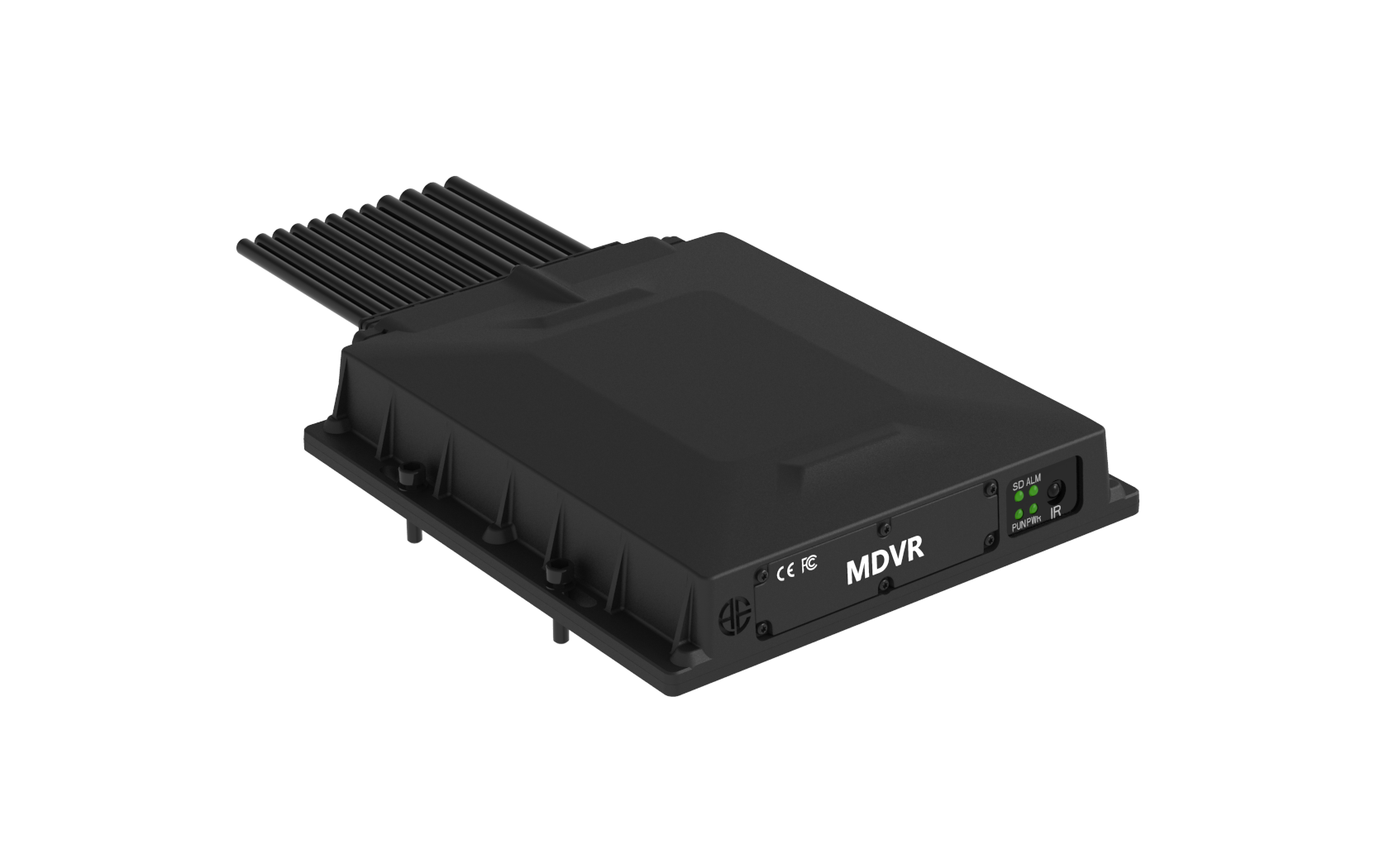

MDVR F04H
4CH / AI MDVR / All-In-One Device
The DVRF04H is a DVR specially designed for forklifts, featuring IP67 waterproofing, MIL-STD-810G vibration resistance, and rich expandability for connecting various external devices. It supports 4-channel 1080P recording, dual SD storage, GPS/BDS, and optional DSM, and BSD functions for advanced safety and driver monitoring.
Contact Us

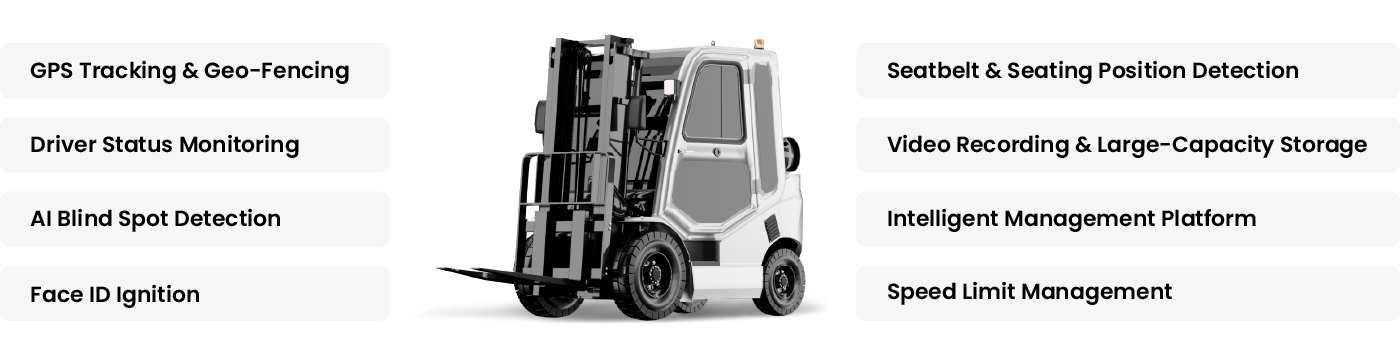

Features
01
Forklift-specific design: Developed exclusively for forklift applications, optimized for industrial work environments.
02
Rugged protection: IP67 waterproofing and MIL-STD-810G vibration resistance ensure reliable operation in harsh conditions.
03
Rich expandability: Supports integration with external devices such as seatbelt sensors, posture sensors, and other safety equipment.
04
Versatile connectivity: Multiple interfaces including RS232, RS485, CAN, RJ45, and USB2.0 enable flexible system expansion.
05
High-definition recording: 4-channel 1080P AHD input with H.264/H.265 compression for clear, efficient video storage.
06
Large storage capacity: Dual SD card slots supporting up to 512GB each for extended recording time.
07
Integrated positioning: GPS/BDS technology enables accurate vehicle tracking and remote monitoring.
08
Advanced safety functions: Optional DSM, and BSD features provide driver assistance and blind spot detection.
Function Integration
Mobile DVR
Mobile DVR
Camera Support
Our system offers comprehensive camera support, allowing you to connect multiple types of cameras with ease. It supports 4-channel CVBS/1080P AHD, which are well - known for their high - quality analog video transmission, ensuring clear and detailed footage. Additionally, it has 1 - channel IPC input, enabling seamless integration with IP cameras for more advanced and network - based video solutions. This wide - range camera support caters to various surveillance needs and scenarios.
4-channel CVBS
4-channel CVBS
1080P AHD
1080P AHD
multiple types of cameras
Easily connect multiple types of cameras
Forklift MDVR
Facial Authentication for Forklift Operation
As specialized industrial vehicles, forklifts must be operated by authorized personnel to ensure safety and compliance. The DVRF04H integrates with the DSM camera to enable facial authentication, requiring the driver to pass verification after key insertion before operating the forklift.
AI-BSD

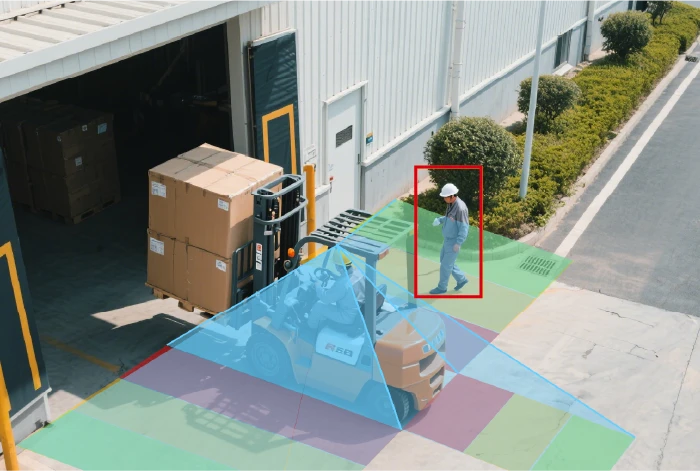

AI-BSD: Intelligent Pedestrian Warning
Operating in warehouses, factories, and logistics centers, forklifts often face complex environments with dense pedestrian and vehicle traffic. The DVRF04H supports AI-BSD cameras, in-vehicle displays, and alarms. When a pedestrian enters the warning zone, the system issues real-time alerts to the driver, effectively reducing collision risks.
Forklift MDVR
Integrated Seatbelt & Posture Compliance
Wearing a seatbelt and maintaining proper driving posture ensures operator safety while reducing risk management pressure for supervisors. The DVRF04H integrates with seatbelt and posture sensors to issue alerts upon detecting violations and automatically upload incident records to the management platform.
Forklift MDVR
AI-Powered Monitoring for Driver & Vehicle Safety
The MDVR integrates seamlessly with the DSM camera, delivering dual-layer protection for both driver monitoring and vehicle management. It detects fatigue, distraction, and unsafe behaviors in real time while synchronizing video footage and alerts to the management platform. With recorded playback and behavioral analytics, it enhances driving safety and provides a traceable solution for enterprise risk control.
Forklift MDVR
Smart Speed Control to Reduce Risks
Over speeding is a major factor in forklift accidents. The MDVR’s speed limit management function helps mitigate this risk by issuing alerts when the vehicle exceeds the set threshold and gradually restricting acceleration to ensure safe operation.
Forklift MDVR
GPS Positioning & Smart Geo-Fencing
DVRF04H features GPS positioning for precise vehicle tracking and operation logging. With integrated geo-fencing, it allows flexible configuration of work zones and restricted areas. When a vehicle crosses boundaries or enters a prohibited zone, the system automatically triggers alerts and uploads the event to the management platform, enabling efficient area control and risk prevention.
Forklift MDVR

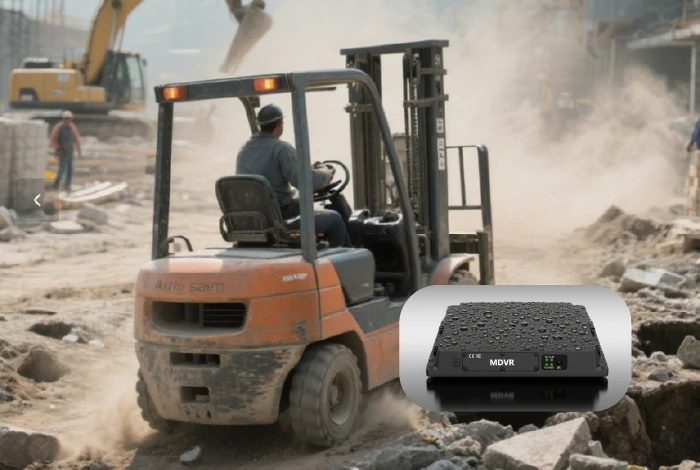

Engineered for Harsh Environments
DVRF04H features an innovative breather valve for pressure balance and moisture control, passes MIL-STD-810G vibration tests up to 2.5G, and offers IP67 waterproof protection for reliable performance in harsh forklift environments.
When it comes to storage, our system offers generous capacity. It supports dual 512G SD card, which means you can store a vast amount of video data. This large storage space is especially useful for long-term surveillance,
Large Storage
as it allows you to keep records for an extended period without worrying about running out of storage. You can rely on our system to store all the important footage securely.
Mobile DVR Mobile DVR
Efficient Data Management
Our system has reliable and efficient data management capabilities. It can handle large volumes of data smoothly, ensuring that there is no data loss or corruption. The data management system is designed to organize the data in a logical way, making it easy to search and retrieve specific information. Whether it's sorting the footage by time, location, or event type, our system can do it quickly and accurately, providing you with a hassle-free data management experience.
Product Specifications

Language

English / Chinese

Operation Interface

Graphical User Interface (OSD menu）

Password Security

2 Levels: Administrator & User

DSM (Optional）

Yawning Detection

Eyes Closing Detection

Smoking Detection

Making Phone Calls Detection

Distraction Detection

Driver Absence Detection

Camera Covered Detection

Wearing Glasses Detection

ADAS (Optional）

Lane Departure Warning

Safe Distance Warning

Froward Collision Warning

Pedestrian Collision Warning

BSD (Optional）

Blind Spot Detection (front & right)

Video Input

4 channel 1080P AHD/720P AHD/960 H/D1/CIF+1 channel IPC (720P/1080P）Video Input

Video Output

1 channel (Optional：AHD/CVBS)

Video monitor

Single screen, 1~5 screens

Signal System

PAL/NTSC

Image Compression

H.264 /H.265

Audio Input

4 Channel

Audio Output

1 Channel (SW-2P）

Record Format

Synchronized A/V recording

Video encoding

ISO14496-10 Industry standard

Storage

2 SD Card Slots, Up to 512GB each

Alarm Input

9 Channels, selectable trigger less than 0.7VDC or greater than 5VDC

Alarm Output

1 channel with external relay

RS485

1 port for PTZ control or data device use

RS232

2 Channel

Speed

1 Channel

CAN

1 Channel

Wireless communication

3G/4G

Internal Standard GPS

Internal GPS module.

Real-time geographic coordinates

speed information

Internal G-Sensor

Support for 3-axis gyroscope (G-Sensor), collision detection and other detection.Sharp breaks, acceleration and cornering

PC Playback

A/V, GPS, Map View, Speed, G-Sensor and other files can be played back on a PC. limited playback is also available on the MDVR

Platform

Wireless (Wi-Fi or cellular option required) real-time A/V monitoring, GPS, alarms etc

Upgrade Method

Local or Remote

Voltage Input

10.8~ 36V

Voltage output

12V

Operating Temperature

-30℃ ~ 70℃
Application
scenarios
AUTOEQUIPS 4CH Waterproof AI MDVR all-in-one device is widely applied, able to offer professional and reliable vehicle management solution for buses, passenger cars, tourist cars, school buses and other vehicles and support DMS, ADAS, BSD, APC,360 and passenger flow statisctics algorithm, guranteeing safe driving, effectively improving the operation efficiency.
Construction Vehicles
Construction Vehicles
Truck Transportation
Truck Transportation
