Products BlindVue® Camera Monitor System Mirror Replacement-Bus
Mirror Replacement-Bus
AUTOEQUIPS’ Camera Monitoring System is a crucial safety asset for buses, ensuring commercial vehicle safety with real - time blind spot visualization and advanced view - panning. Built for reliability in all conditions, it enhances driver awareness and operational efficiency specifically tailored to the needs of bus operations.
AHD LVDS
Camera Monitor System
Vehicle Monitor
Vehicle Monitor

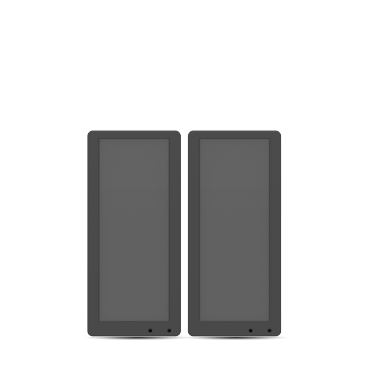

Mirror Replacement-Bus AHD

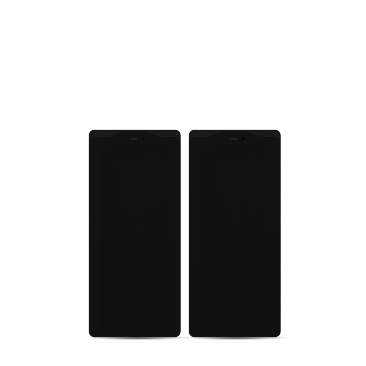

Monitor DM12AS
Monitor TM90A
Control Box CB145

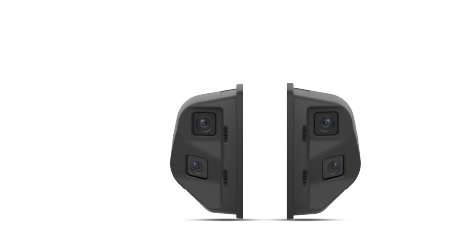

Vehicle Camera CM50EX
Vehicle Camera CS30V
Contact Us
Camera Monitor System
Mirror Replacement-Bus
Mirror Replacement-Bus

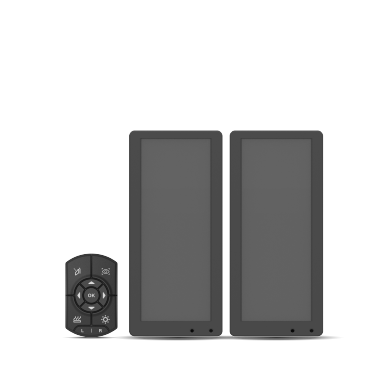

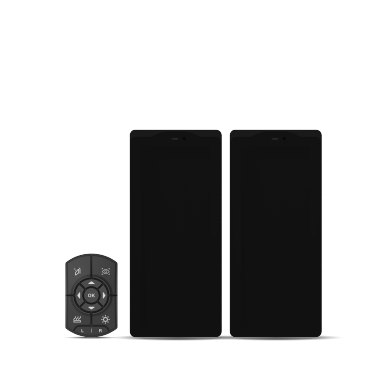

Mirror Replacement-Bus LVDS
Monitor DM12D
Monitor DM90D
Vehicle Camera CM60EX
Vehicle Camera CS60X
Control Box CB521
Keypad KP101
Contact Us
Features
01
Passed EU UNECE R46, R10, R118, as well as vehicle - type approval processes including Homologation and Type Approval.
02
Fully replaces traditional physical rearview mirrors and meets the direct vision regulations of the EU, the United States (SAE J3155), China (GB 15084 - 2020), and Taiwan, China.
03
Reduce wind resistance, enabling energy conservation and environmental protection.
04
Featuring system failure detection and self - inspection, ensuring fully reliable functionality.
05

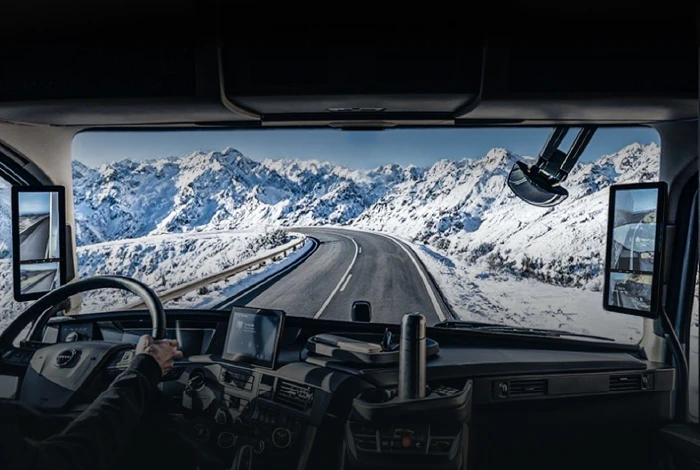

Equipped with a camera heating function, it can withstand extreme weather; it provides clear vision even in harsh weather and dark environments.
06
Boasting extensive road - driving experience, it has accumulated a total actual driving mileage of nearly 300,000 kilometers across multiple countries, including Europe, the United States, and China.

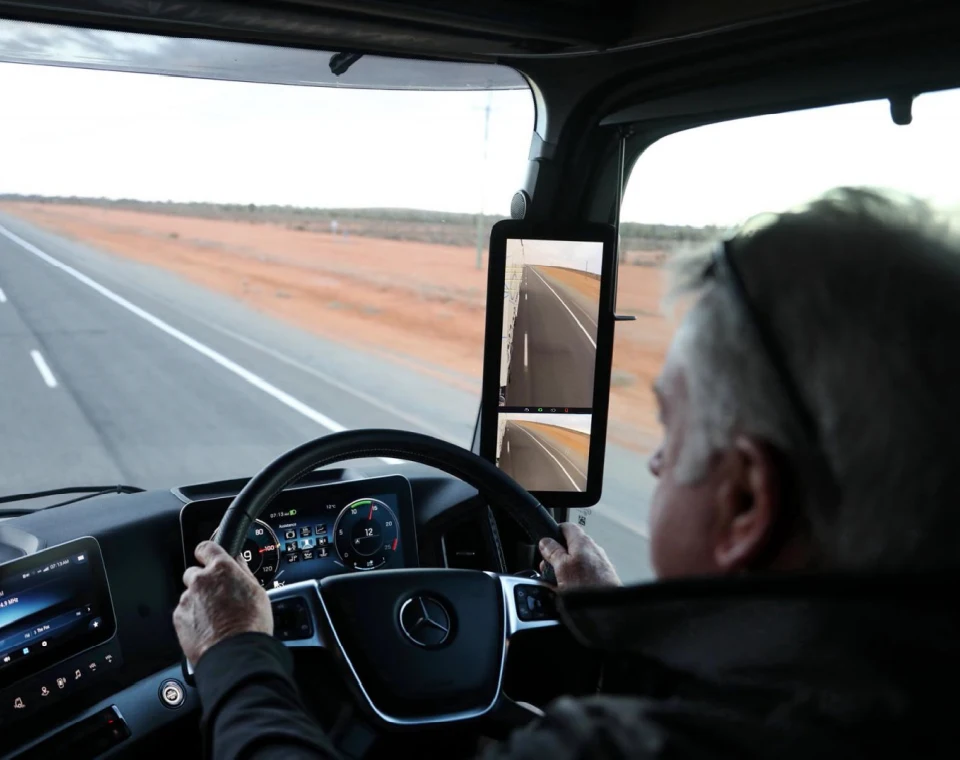

High Definition Image Quality
Utilizes electronic rearview mirrors technology to provide clear, detailed images for bus drivers. Whether they are navigating through busy city streets or on long - distance routes, the high - definition visuals ensure an optimal visual experience, allowing drivers to easily spot potential hazards.

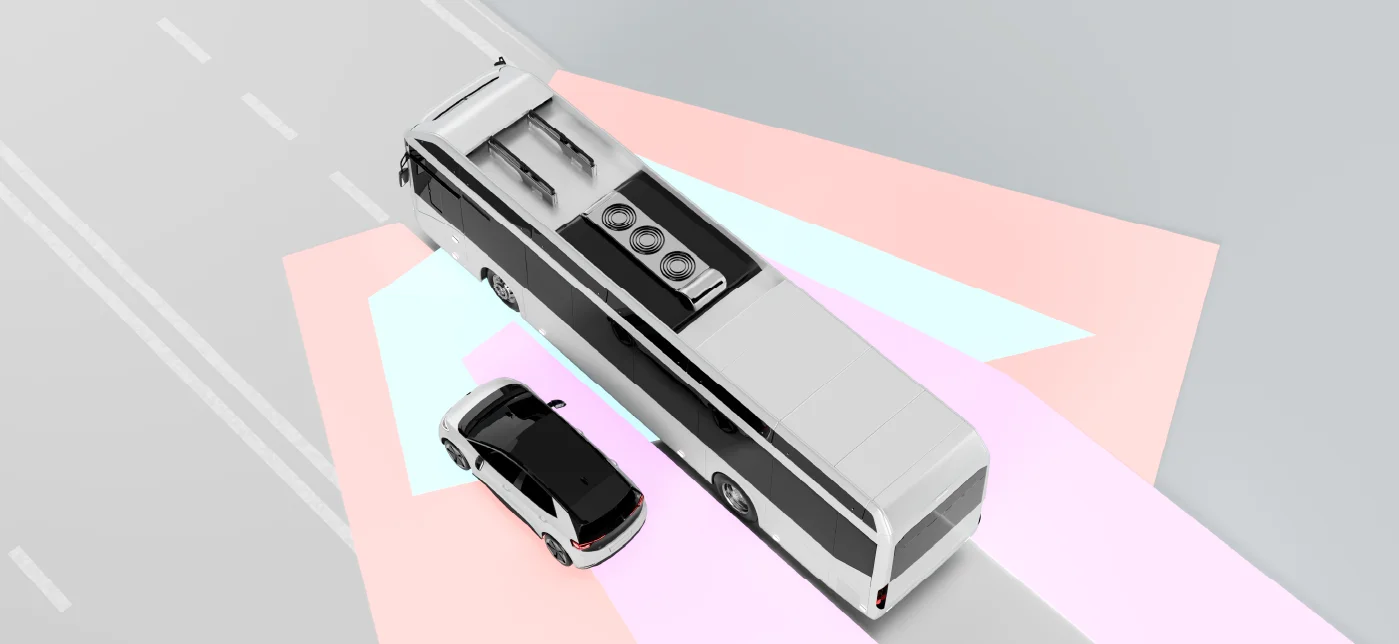

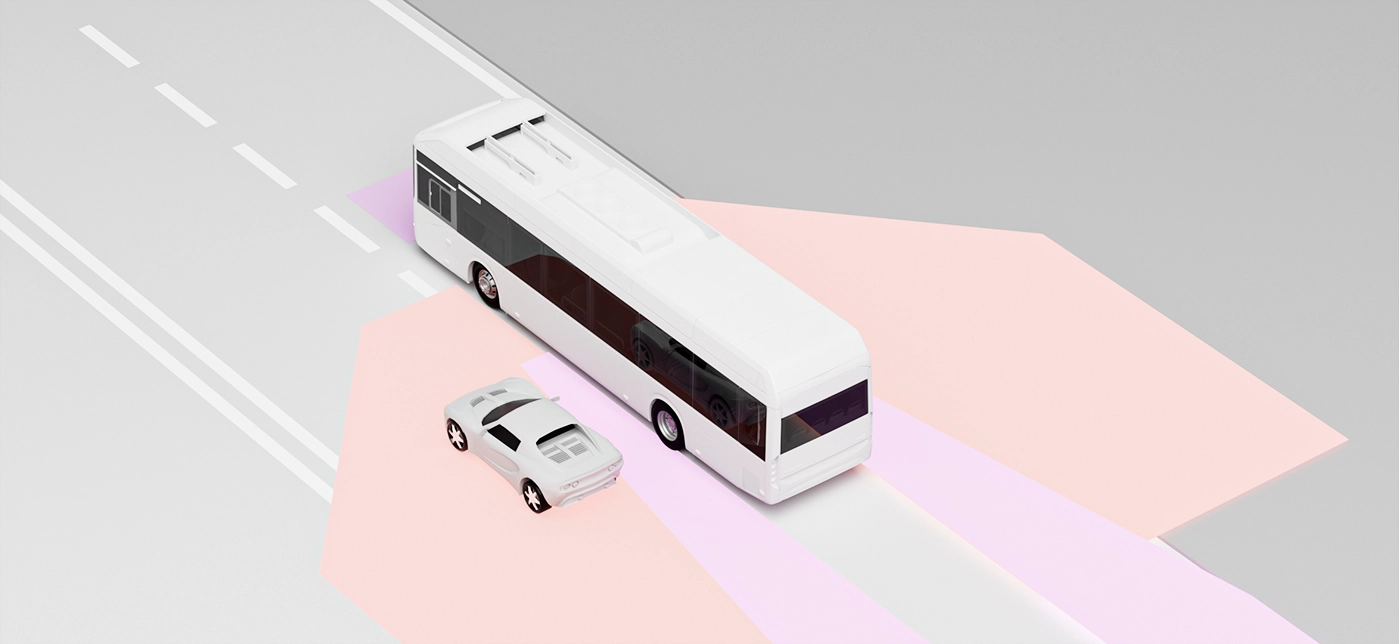

Wide Field of View
Electronic rearview mirrors, a key component of this system for buses, offer a broader field of view compared to traditional mirrors, which reduces these blind spots, enhancing driving safety and making it easier for bus drivers to change lanes or park safely.

Bus Mirror Replacement
Bus Mirror Replacement

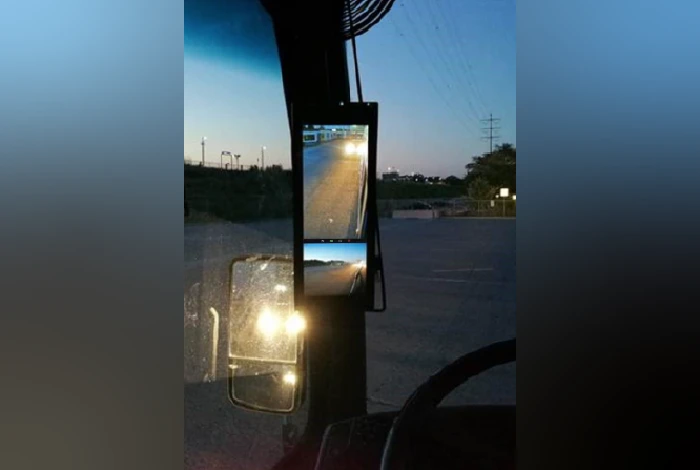

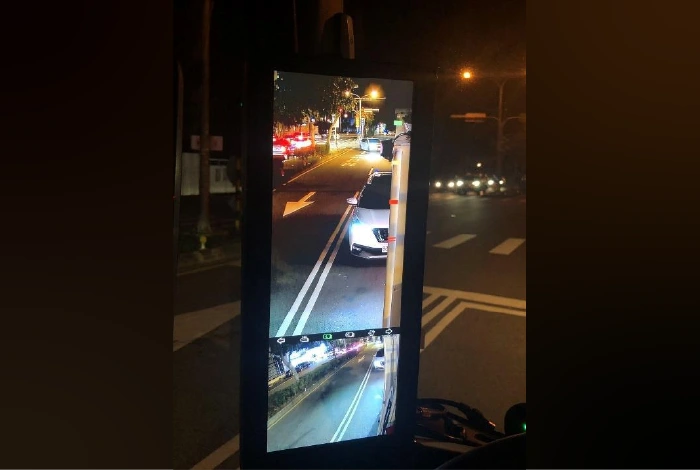

Night Vision Function
Equipped with advanced night vision technology, the system enables bus drivers to have clear rear views even in low - light conditions. This feature ensures that the driver can monitor the rear of the bus effectively, protecting passengers and other road users.
Bus Mirror Replacement
Anti-Glare Design
In the context of bus travel, the anti - glare design effectively suppresses strong light from rear vehicles. This is crucial as buses minimizing glare improves nighttime driving safety for the bus driver and those on board.
Bus Mirror Replacement

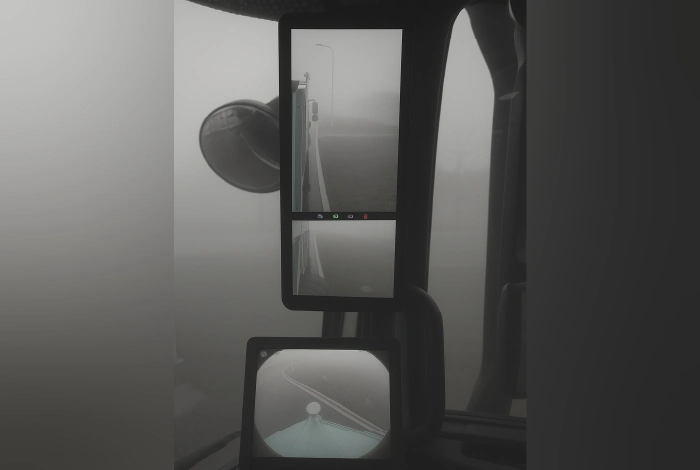

Waterproof and Anti-Fog
Buses operate in all kinds of weather, and the Camera Monitoring System's waterproof and anti - fog design ensures clear images in various adverse weather conditions.
Bus Mirror Replacement

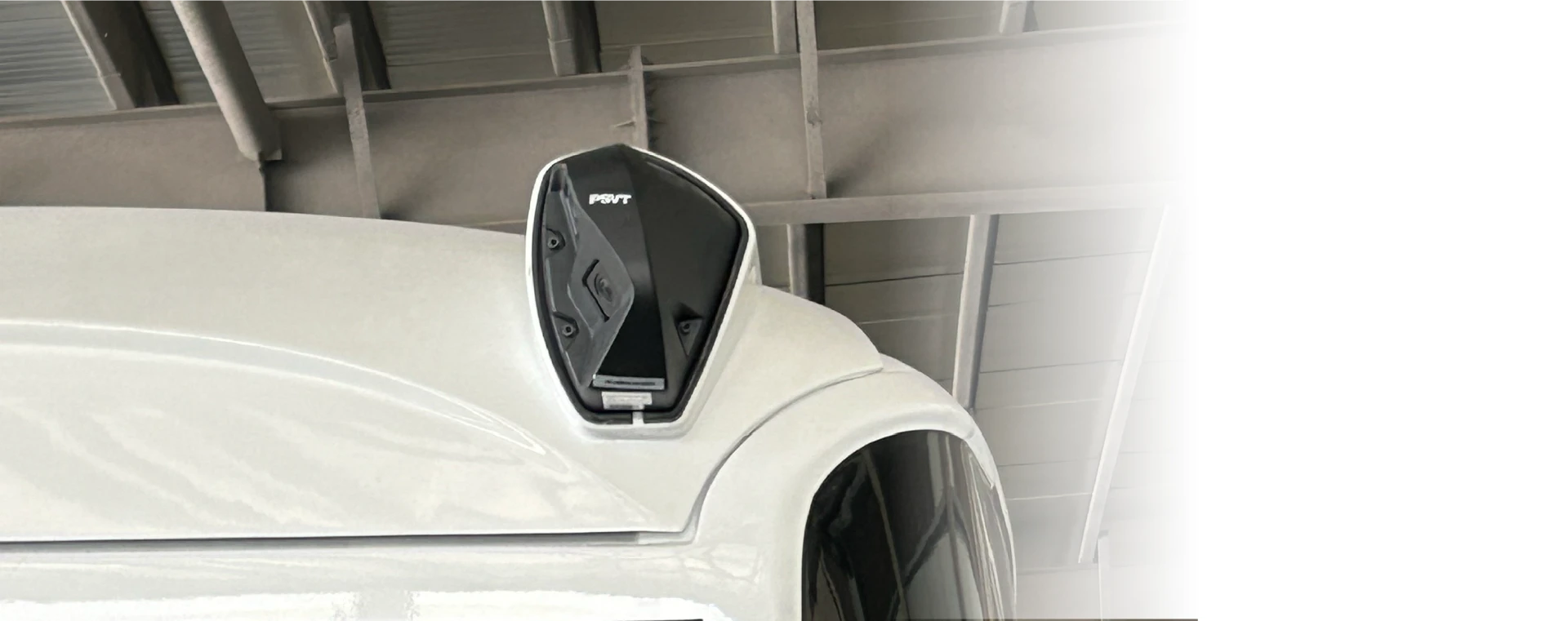

Shock - Resistant and Durable
Designed for buses, the system has great shock resistance. Buses face bumps and vibrations, and this design ensures cameras work well, guaranteeing long - term durability.
Bus Mirror Replacement
Easy Installation
The system's modular design allows for quick and simple bus installation. It saves bus operators' time and costs, reducing vehicle downtime.
Product Specifications
AHD LVDS
Monitor AHD Camera
Monitor AHD
12.3-inch AHD Monitor DM12AS
Screen Size 12.3 inches
Resolution 1920*720
Contrast Ratio 1000
Brightness 850 cd/m²
Viewing Angle Up/Down/Left/Right: 85°/85°/85°/85°
Output Frequency NTSC 30 FPS / PAL 25 FPS
CAN 2 sets
Response Time 35 ms (25 ± 2°C)
Video Input 2-channel AHD 1080P
Operating Voltage DC 9V~36V
Operating Temperature -30°C to +70°C
Storage Temperature -40°C to +85°C
9-inch AHD Monitor TM90A
Screen Size 9 inches
Resolution 1024*600
Contrast Ratio 800
Brightness 950 cd/m²
Viewing Angle Up/Down/Left/Right: 85°/85°/85°/85°
Output Frequency NTSC 30FPS / PAL 25FPS
CAN 2 sets
Response Time 35 ms (25 ± 2°C)
Video Input 2-channel AHD 1080P
Operating Voltage DC 9V~36V
Operating Temperature -30°C to +70°C
Storage Temperature -40°C to +85°C
Camera
Camera CM50EX
Image Type 1/3-inch CMOS image sensor
Resolution 1920*1080
System Standard PAL/NTSC
Field of View (FOV) Class II 17°(H)/35°(V), Class IV 65°(H)/57°(V)
Video Output AHD 1080P 25/30FPS
Rated Voltage DC 12V
Operating Voltage DC 8V~15V
Water and Dust Protection Rating IP69K
Camera CS30V
Image Type 1/2.7-inch CMOS image sensor
Resolution 1920*1080
System Standard PAL/NTSC
Field of View (FOV) 187.4°(D), 156.4°(H), 83.4°(V)
Video Output AHD 1080P 25/30FPS
Operating Voltage DC 8V~15V
Water and Dust Protection Rating IP69K
LVDS Monitor​ Camera​
LVDS Monitor​
DM12D 12.3-inch LVDS Monitor​
Screen Size 12.3 inches
Resolution 1920*720
Contrast Ratio 1000
Brightness 1000 cd/m²
Viewing Angle Up/Down/Left/Right:85°/85°/85°/85°
Output Frame Rate 60FPS
CAN 2 CH
Response Time 35 ms (25 ± 2°C)
Video Input 2CH LVDS
Operating Voltage DC 9V~36V
Operating Temperature -30°C to +75°C
Storage Temperature -30°C to +85°C
DM90D 9-inch LVDS Monitor
Screen Size 9 inches
Resolution 1280*720
Contrast Ratio 800
Brightness 950 cd/m²
Viewing Angle Up/Down/Left/Right:85°/85°/85°/85°
Output Frame Rate NTSC 30FPS /PAL 25FPS
CAN /
Response Time 35 ms (25 ± 2°C)
Video Input 1CH LVDS
Operating Voltage DC 9V~36V
Operating Temperature -30°C to +70°C
Storage Temperature -40°C to +85°C
Camera​
CM60EX Camera
Image Sensor 1/2.6-inch CMOS Image Sensor
Resolution 1920*1280
Output Format LVDS
Field of View Class II 64°(H)/42.1°(V)、Class IV 100.2°(H)/65.2°(V)
Minimum Illumination 0.1 Lux
Wide Dynamic Range 140 dB
Anti-Flicker Supported
Video Output LVDS 1920*1280 Raw 60 FPS
Waterproof & Dust Resistance IP69K
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
CS60X Camera​
Image Sensor 1/2.8-inch CMOS Image Sensor
Resolution 1920*1080
System PAL/NTSC
Field of View 170°(H)/90°(V)
Minimum Illumination 0.1 Lux
Wide Dynamic Range >120dB
Signal-to-Noise Ratio 42dB
Video Output LVDS 1920*1080 25/30 FPS
Waterproof & Dust Resistance IP69K
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
