Products General Safety Regulation General Safety Regulation Kits CB757

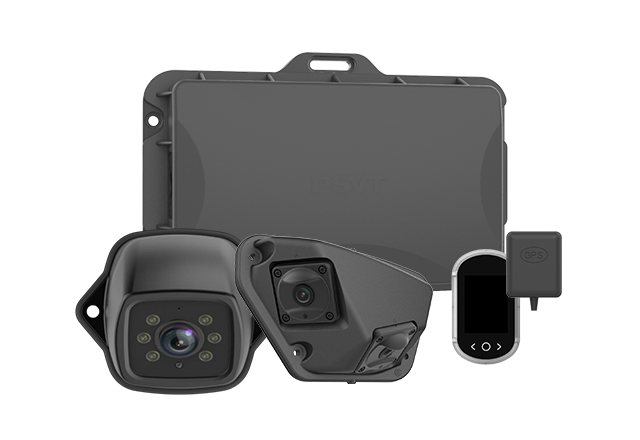

General Safety Regulation Kits CB757
AUTOEQUIPS General Safety Regulation kits CB757 system is engineered to comply with UNECE R151 (BSIS), R158 (RVCS), and R159 (MOIS) regulations. Leveraging AI-based image recognition via a central control unit, it detects vulnerable road users (VRUs)—such as pedestrians, cyclists, and motorcyclists—in blind spots. Upon identifying potential collision risks, the system issues real-time visual and audible alerts, enhancing driver awareness and road safety.
General Safety Regulation kits
General Safety Regulation kits
General Safety Regulation kits
General Safety Regulation kits
General Safety Regulation kits
General Safety Regulation kits

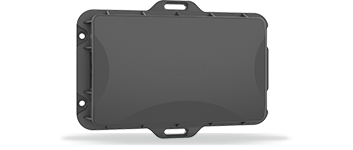

Control Box CB757

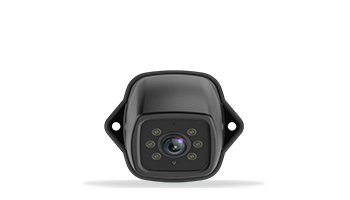

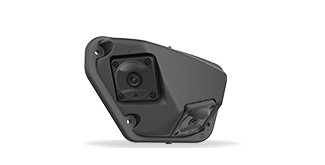

Vehicle Camera CM50ED

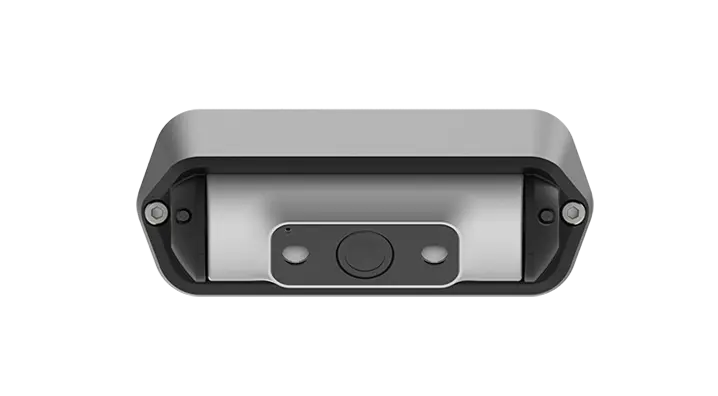

Vehicle Camera CS51C

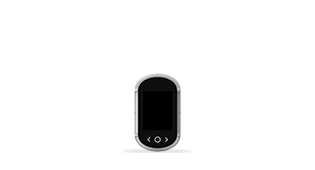

AlarmTM32A

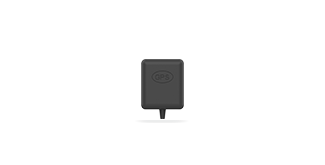

GPS AP103A
Contact Us
Features
01
Complies with global safety regulations including R151, R159, R158, DVS PSS, and ABE.
02
IP69K-rated with lens heating for extreme-condition reliability.
03
Advanced AI enables precise detection and timely warnings.
04
Supports one-click regulation switching to adjust detection.
05
Dynamically detects tractor blind spots during turns.
06
AI-powered VRU motion trajectory prediction and anti-collision alarm.

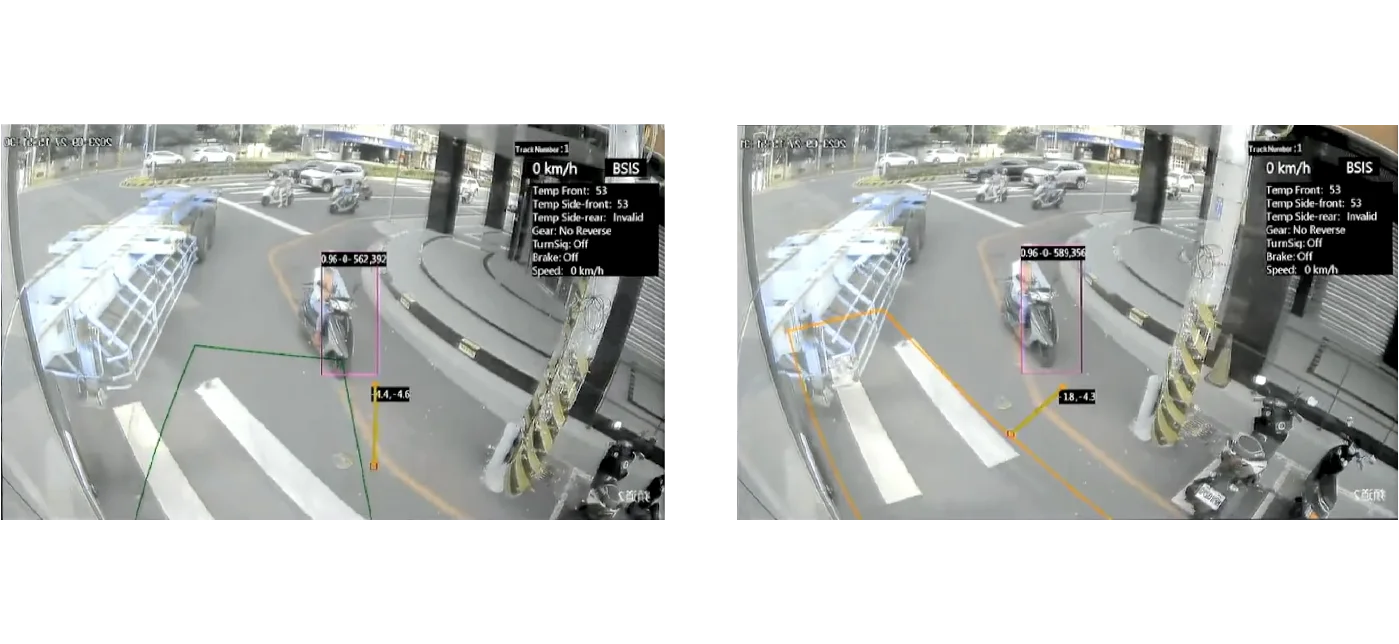

AI-Powered VRU Motion Trajectory Prediction and Anti-Collision Alarm
Taking safety to the next level, the product utilizes AI to predict the motion trajectories of vulnerable road users (VRUs) such as pedestrians and cyclists. By analyzing the movement patterns and speed of VRUs, the system can anticipate their future positions. If a potential collision is predicted based on this trajectory analysis, the product triggers an anti-collision alarm. This proactive approach gives drivers additional time to respond and take evasive action, significantly enhancing the safety of both VRUs and vehicle occupants.
Dynamic Tractor Blind Spot Detection During Turns
Specifically designed to address the challenges of tractor operations, the product dynamically detects blind spots during turns. Tractors often have large blind areas, especially when maneuvering, which can pose significant risks. The system continuously monitors these areas as the tractor turns, using sensors and advanced algorithms to detect any objects or vehicles that might enter the blind spots. By providing real-time information about these hidden areas, it helps drivers make safer turning decisions, minimizing the chances of collisions with other road users or obstacles.
General Safety Regulation kits
Genenal Safety Regulation

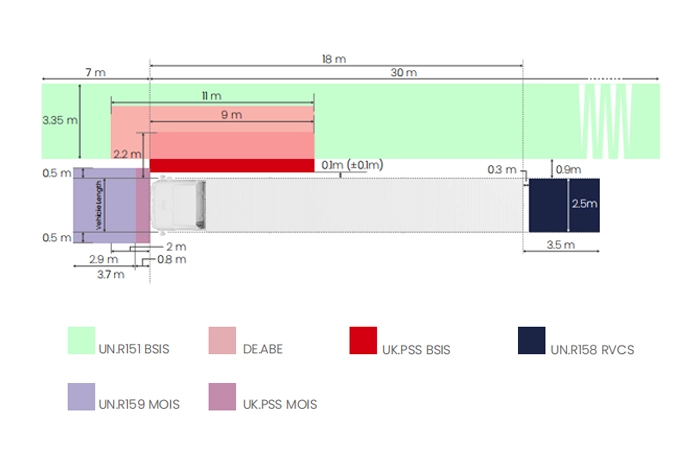

Global Safety Regulation Compliance
This product strictly adheres to a comprehensive set of global safety regulations, including R151, R159, R158, DVS PSS, and ABE. By meeting these diverse and stringent standards, it ensures that vehicles equipped with it can operate legally and safely across various regions and markets. Whether in Europe, with its emphasis on R-series regulations, or in other areas that follow DVS PSS or ABE standards, the product provides a reliable safety solution, giving fleet operators and vehicle manufacturers confidence in regulatory compliance.
General Safety Regulation Kits CB757
Precise Detection and Timely Warnings via Advanced AI
Leveraging advanced artificial intelligence technology, the product achieves a high level of precision in detecting potential safety hazards. The AI algorithms are trained to recognize various objects and scenarios, enabling it to accurately identify risks such as vehicles in blind spots, pedestrians, or other vulnerable road users (VRUs). Once a potential danger is detected, the system triggers timely warnings, which can be in the form of visual alerts on a display, audible signals, or even haptic feedback. This rapid and accurate detection and warning mechanism allows drivers to react promptly, reducing the likelihood of accidents.
General Safety Regulation Kits CB757
One-Click Regulation Switching for Flexible Detection Adjustment
The product offers a user-friendly one-click regulation switching feature. This allows operators or drivers to easily adjust the detection parameters according to different operational needs or environmental conditions. For example, in urban areas with heavy pedestrian traffic, the detection sensitivity can be increased to ensure no VRUs are missed. In more open highway environments, the settings can be tweaked to focus on vehicle-related hazards. This flexibility ensures that the product can be optimized for various scenarios, enhancing its effectiveness in different driving conditions.
General Safety Regulation Kits CB757

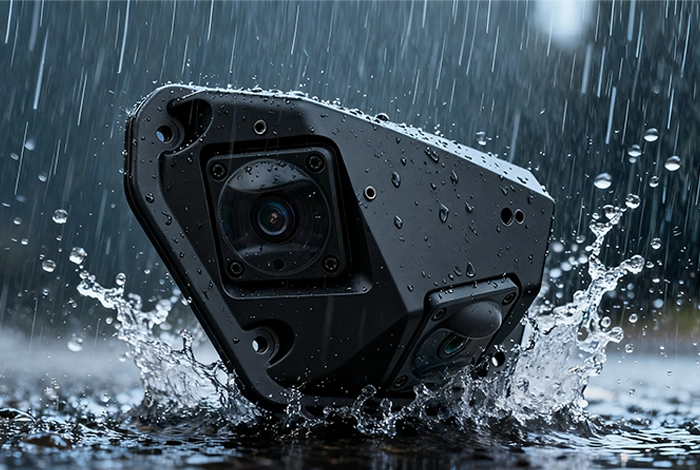

Extreme-Condition Reliability with IP69K Rating and Lens Heating
Boasting an IP69K rating, the product demonstrates exceptional resistance to dust, water, and high-pressure washing, making it well-suited for the harshest operating environments. Additionally, the integrated lens heating functionality is a key asset. In freezing temperatures, fog, or other situations where lenses might fog up or frost over, the heating element activates to keep the lens clear. This ensures that the product's imaging and detection capabilities remain unimpeded, providing consistent and reliable performance even in extreme weather conditions like heavy rain, snow, or intense heat.
Product Specifications
GSR Kits CB757
GSR Kits Control Box CB757 GSR Kits Vehicle Camera CM50ED GSR Kits Vehicle Camera CS51C GSR Kits Alarm TM32A GSR Kits GPS AP103A
GSR Kits Control Box CB757

Memory Card

TF card 1 slot

USB

1

CAN

2CH

Video Input

4CH AHD 1080P 25/30 FPS

Video Output

1CH AHD 1080P 25/30 FPS

Waterproof & Dust Resistance

IP67

Signal I/O

Speed, Reverse, Brake, Left, Right, WS ON/OFF

Rated Voltage

DC 12V/24V

Operating Voltage

DC 9V ~ 36V

Power Consumption

≤30W (4 camera)

Dark Current

<0.1A

Operating Temperature

-40°C ~ 85°C

Storage Temperature

-40°C ~ 85°C

Dimensions

180.5(W)*119.34(H)*39(D)mm

Weight

765g
GSR Kits Vehicle Camera CM50ED

Image Sensor

1/3" CMOS image sensor

Resolution

1920×1080P

Color System

PAL/NTSC

FOV

F:152°(H)85°(V) / R:110°(H) 57°(V)

Video Output

AHD 1080p 25/30 FPS

Minimum Illumination

0.1 Lux

Waterproof & Dust Resistance

IP69K

Rated Voltage

DC 12V

Operating Voltage

DC 8V ~ 16V

Operating Temperature

-40℃ ~ 85℃

Storage Temperature

-40℃ ~ 85℃

Dimensions

154.4(W)*100(H)*49(D)mm
GSR Kits Vehicle Camera CS51C

Image Type

1/2.8 "Inch CMOS

Resolution (Pixels)

AHD 720P/CVBS 960H 、AHD 1080P/CVBS 960H

Effective Pixels

1.0M Pixels

Lens Size

2.3mm

Lens Angle

198°(D)*150°(H)*95°(V)

Color System

PAL/NTSC

Operating Temperature

-30℃~70℃

Storage Temperature

-40℃~80℃

Night Vision Distance

<10m

Dimensions (mm)

75(L)*60(W)*52(D)
GSR Kits Alarm TM32A

Memory Card

TF card 1 slot

CAN

1

Rated Voltage

DC 12V/24V

Operating Voltage

DC 9V ~ 36V

Power Consumption

≤4W

Operating Temperature

-30℃ ~ 70℃

Storage Temperature

-40℃ ~ 85℃

Dimensions

76.8(W)*129.6(H)*24(D)mm
GSR Kits GPS AP103A

Ultra High Track Sensitivity

-165dBm

Baud Rate

115200.10Hz

Operating Voltage

3.0V~5.5V

Power Consumption

50mA@3.3V

Patch Antenna Size

35*35*4mm

Small Form Factor

55+0.5x50+0.5x18.4+0.3mm

Communication Type

UART/TTL
