Products PSVT® Vehicle Monitor 7 Inch Monitor
7 Inch Monitor

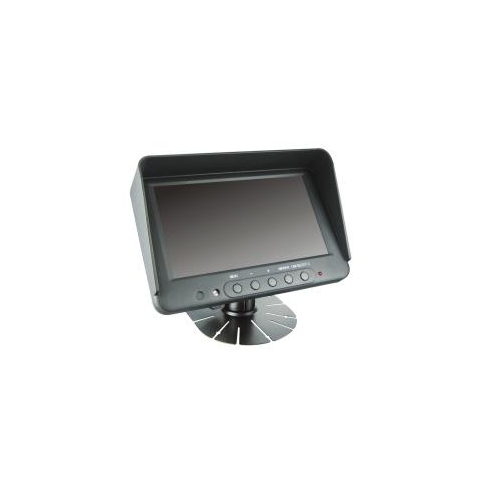

7 Inch Monitor TM70CC
The TM70CC is a 7-inch rear view monitor with dual AHD/CVBS input with manual V1/V2 switching, auto activation on reverse gear, and 1024×600 resolution. It features wide viewing angles, day/night brightness adjustment, mirror/normal switch, built-in speaker, and sun visor—offering clear, reliable performance for commercial vehicles.
Send Inquiry
7 - Inch Monitor TM70CC
7 - Inch Monitor TM70CC
Features
01
Rear View Integration: Automatically activates when reverse gear is engaged, ideal for backup camera systems.
02
Dual Video Input: Supports AHD/CVBS signals with manual V1/V2 switching via CAM SELECT button.
03
High-Resolution Display: 1024×600 digital TFT LCD panel with 500 cd/m² brightness and wide viewing angles.
04
Adaptive Display Settings: Day/night sensor for auto brightness, mirror/normal image switching, and OSD menu operable under mirrored mode.
05
User-Friendly Design: Built-in control box, built-in speaker, and sun visor for better viewing in sunlight.
Technical Data

 Resolution (Pixels)

 1024*3 (RGB)*600

 Wide Viewing Angle (CR>10)

(Up/Down): 60/70; (Left/Right): 80/80

 Brightness

 500 cd/m²

 Contrast

 800

 Color System

 PAL / NTSC (Auto)

 Video Input

 2 Channels

 Video Mode

 AHD / CVBS (Auto)

 Response Time

 20 ms (25°C)
Operating Voltage
DC 12-24 V
Max Power Consumption
≤10W
Operating Temperature
-20°C to +70°C
Storage Temperature
-30°C to +80°C

Dimensions (mm)

 194.5(L)*127.5(W)*58.5(D)
