Products PSVT® Vehicle Camera Rear View Camera
Rear View Camera

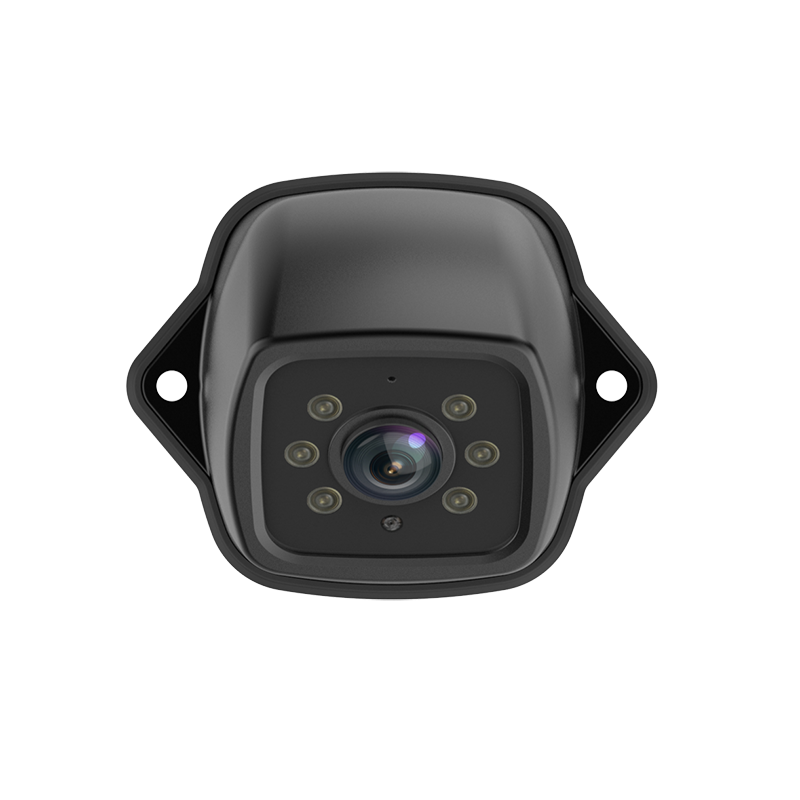

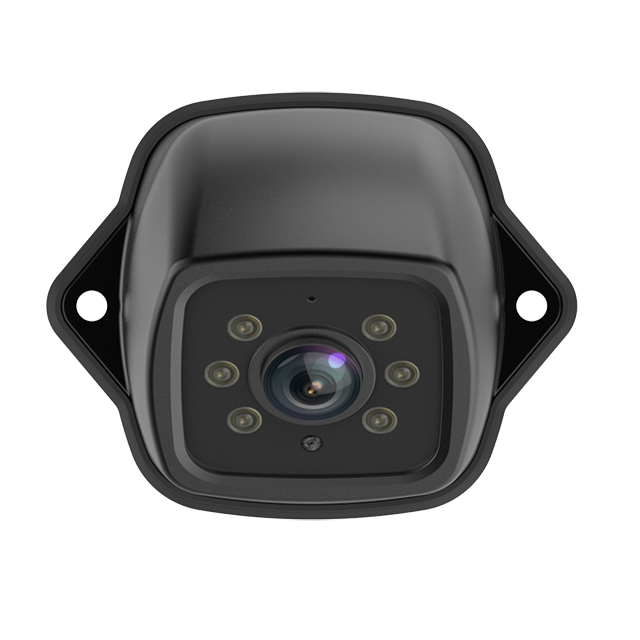

Rear View Camera CS51C
The CS51C rear view camera is a versatile solution designed for all types of commercial vehicles, supporting installation in any direction. It features dual output modes (AHD and CVBS) switchable via magnetic induction, along with mirror/normal image switching for flexible setup. Built-in infrared lighting and an automatic IR-cut filter ensure clear imaging day and night, with night vision up to 10 meters. A built-in microphone adds audio monitoring, making it ideal for comprehensive vehicle surveillance.
Send Inquiry
Rear View Camera CS51C
Rear View Camera CS51C
Features
01
Versatile Application: Designed for all types of commercial vehicles, adaptable to various installation needs.
02
Multi-Directional Mounting: Supports flexible installation in any direction.
03
Built-in Microphone: Captures audio to enhance monitoring capabilities.
04
Dual Output Modes: Switchable between AHD and CVBS via magnetic induction.
05
Mirror/Normal Image Switching: Easily toggle display mode based on installation position.
06
Infrared and ICR Function: Equipped with infrared light and automatic IR-cut filter for clear day/night imaging.
07
Enhanced Night Vision: Delivers visibility up to 10 meters in low-light environments.
Technical Data

Image Type

1/2.8 "Inch CMOS

Resolution (Pixels)

AHD 720P/CVBS 960H 、AHD 1080P/CVBS 960H

Effective Pixels

1.0M Pixels

Lens Size

2.3mm

Lens Angle

198°(D)*150°(H)*95°(V)

Color System

PAL/NTSC

Operating Temperature

-30℃~70℃

Storage Temperature

-40℃~80℃

Night Vision Distance

<10m

Dimensions (mm)

75(L)*60(W)*52(D)
